Fig. S8

ID
ZDB-IMAGE-111214-7
Source
Figures for Kasprick et al., 2011
Figure Caption

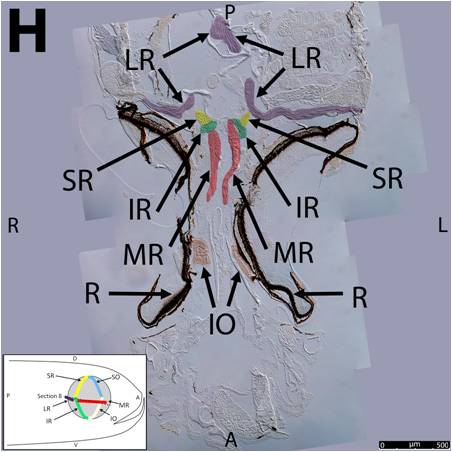

Fig. S8 Key anatomical features within the WT adult zebrafish orbit are highlighted on 12µm thick coronal sections originally imaged using 200X magnification with DIC prisms to show topographical tissue architecture. Sections proceed in the dorsal (S1) to ventral (S12) direction and show all 6 muscles extending from origin to globe insertion. A detailed analysis of the anatomy can be found in the “Results” section of this paper. For easy reference, specific EOMs can be observed on the following figures. Superior oblique (S1–S4). Superior rectus (S1–S10). Inferior Oblique (S3–S12). Inferior rectus (S7–S12). Medial rectus (S5–S10). Lateral rectus (S7–S11). Anterior (A), posterior (P), left (L), and right (R) directions are noted on each frame and a schematic illustrating the specific plane of section is located in the lower left corner.
