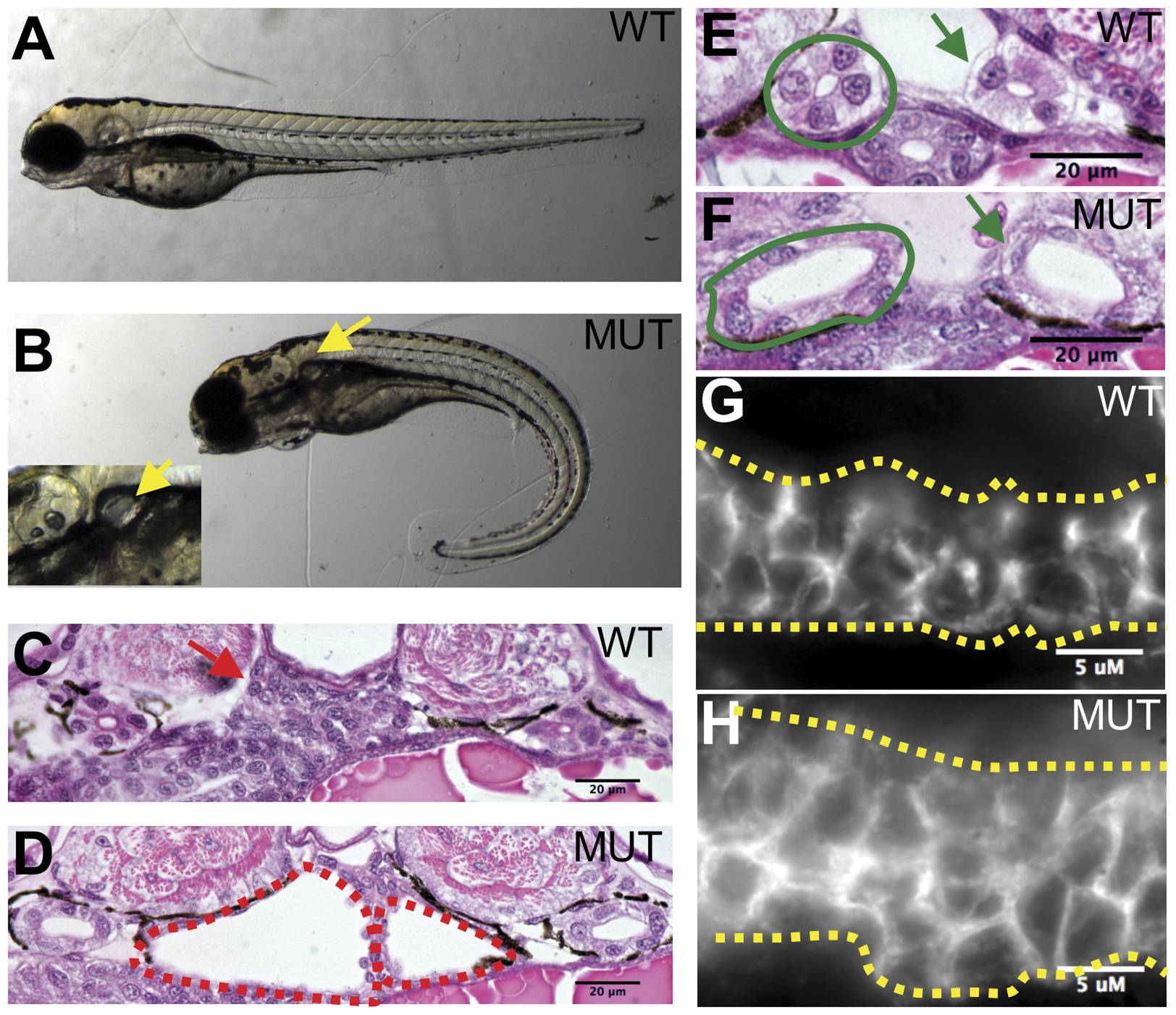

Fig. 1 qilinhi3959A mutant develops body curvature and kidney cysts.

(A, B) Side view of embryos at 3 dpf. Inset in B is a zoomed in view of the kidney cyst in the mutant. (Cā€“D) Cross section through the glomerular-tubular region of embryos at 5 dpf. Red arrow in C points to the fused glomeruli, while red dotted lines in D outline the cysts. (Eā€“F) Cross sections of the duct of embryos at 5 dpf. Solid green lines outline the duct. Green arrows point to the duct. (Gā€“H) Side view of the pronephric duct in whole-mount embryos at 5 dpf stained with Cdh-17. Yellow dotted lines outline the duct. WT: wild type; MUT: mutant. Scale bars in Cā€“F: 20 μm, in G and H; 5 μm.
