Fig. S4
- ID
- ZDB-IMAGE-111128-67
- Publication
- Zuniga et al., 2011 - Gremlin 2 regulates distinct roles of BMP and Endothelin 1 signaling in dorsoventral patterning of the facial skeleton
- All Figures
- Figures for Zuniga et al., 2011
|
Figure Caption

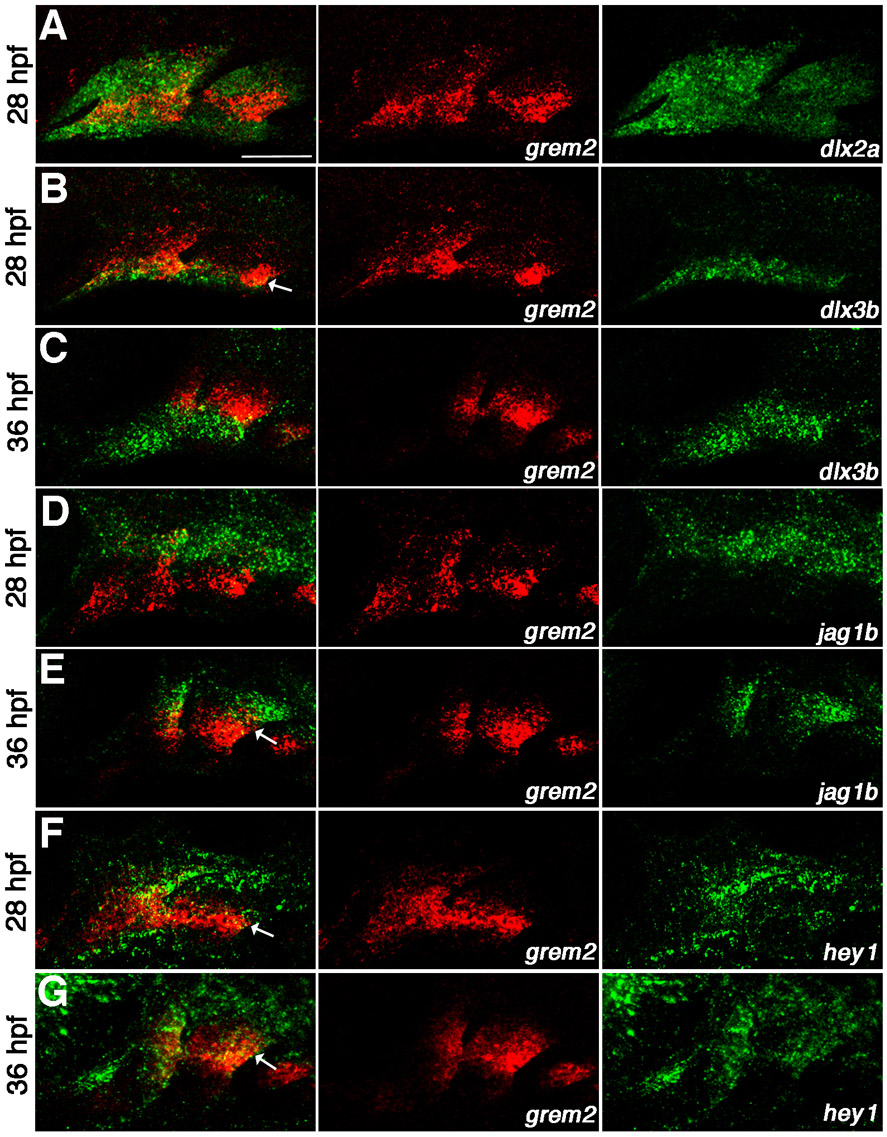

Fig. S4 Colocalization of grem2 with arch markers. (A-G) Confocal projections of in situ hybridizations for grem2 (red) with dlx2a (green, A), dlx3b (green, B,C), jag1b (green, D,E) or hey1 (green, F,G) at 28 hpf (A,B,D,F) or 36 hpf (C,E,G). Arrows show partial colocalization of grem2 with dlx3b, jag1b and hey1. Scale bar: 50 μm.
