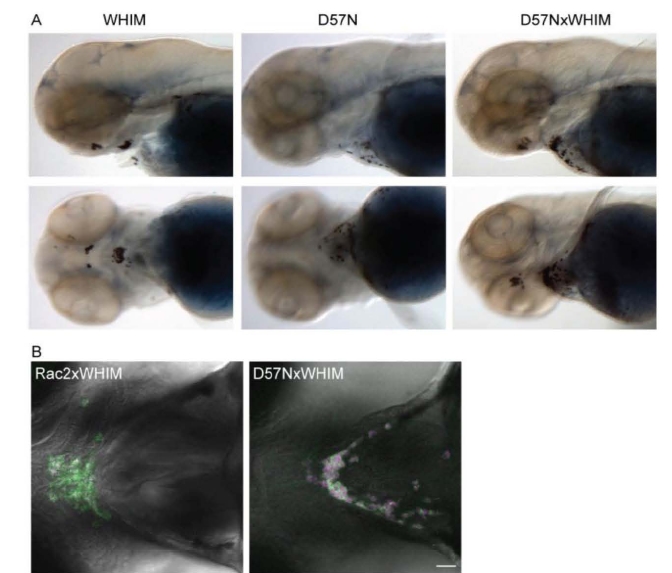

Figure S5. Rac2 D57N partially inhibited CXCR4-WHIM induced neutrophil clustering, related to Figure 6.
(A) Sudan black staining of neutrophil clusters at the ventral side of the head where SDF-1 is expressed in Tg(mpx:CXCR4-WHIM). Rac2 D57N expression in neutrophil partially inhibits this clustering.
(B) Confocal images of neutrophil distribution at the ventral side of the head in Tg(mpx:CXCR4-WHIM, mpx:mCherry-2A-Rac2 WT or D57N) at 3dpf. Green, CXCR4-GFP; red, Rac2-2A-mCherry. Scale bar, 30 μm.
