Fig. 1

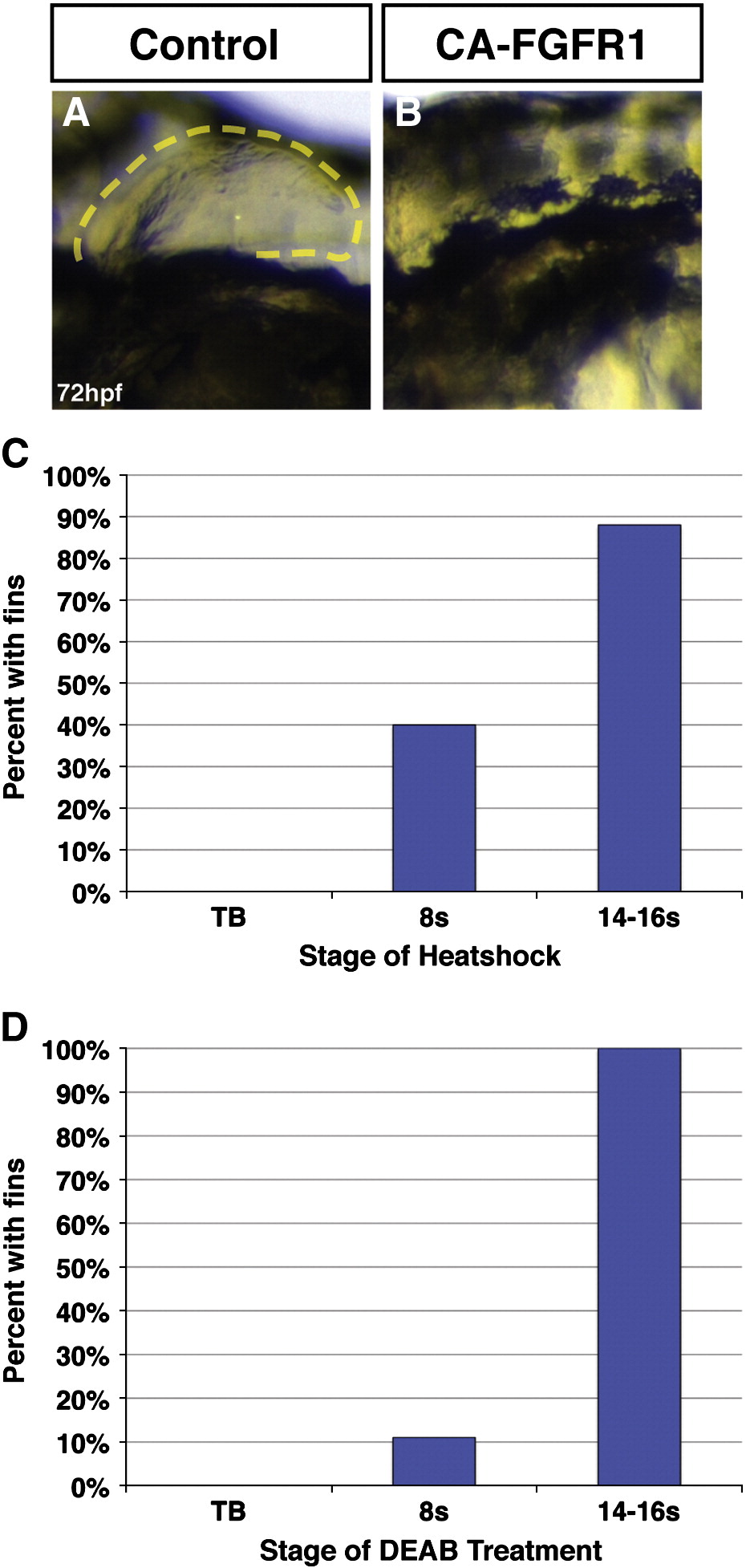

Increased Fgf signaling in the post-gastrula embryo eliminates forelimbs. (A,B) Representative images from a heat-shocked control sibling embryo and a Tg(hsp70:ca-fgfr1)^pd3 embryo. (A) Heat-shocked control sibling embryos had forelimbs (yellow outline). (B) Forelimbs are absent in Tg(hsp70:ca-fgfr1)^pd3 embryos heat-shocked at the TBstage. (C) Graph indicating the percentage of Tg(hsp70:ca-fgfr1)^pd3 embryos with forelimbs when heat-shocked at the TB (n = 10), 8s (n = 15) or 14–16s (n = 6) stages from a representative experiment. 100% of control sibling embryos heat-shocked at the TB (n = 11), 8s (n = 16) or 14–16s (n = 7) stages had forelimbs. (D) Graph indicating the percentage of DEAB treated embryos with forelimbs when treatments were initiated at the TB (n = 42), 8s (n = 46) and 14–16s (n = 27) stages. 100% (n = 85) of untreated control sibling embryos had forelimbs.
