Figure Caption

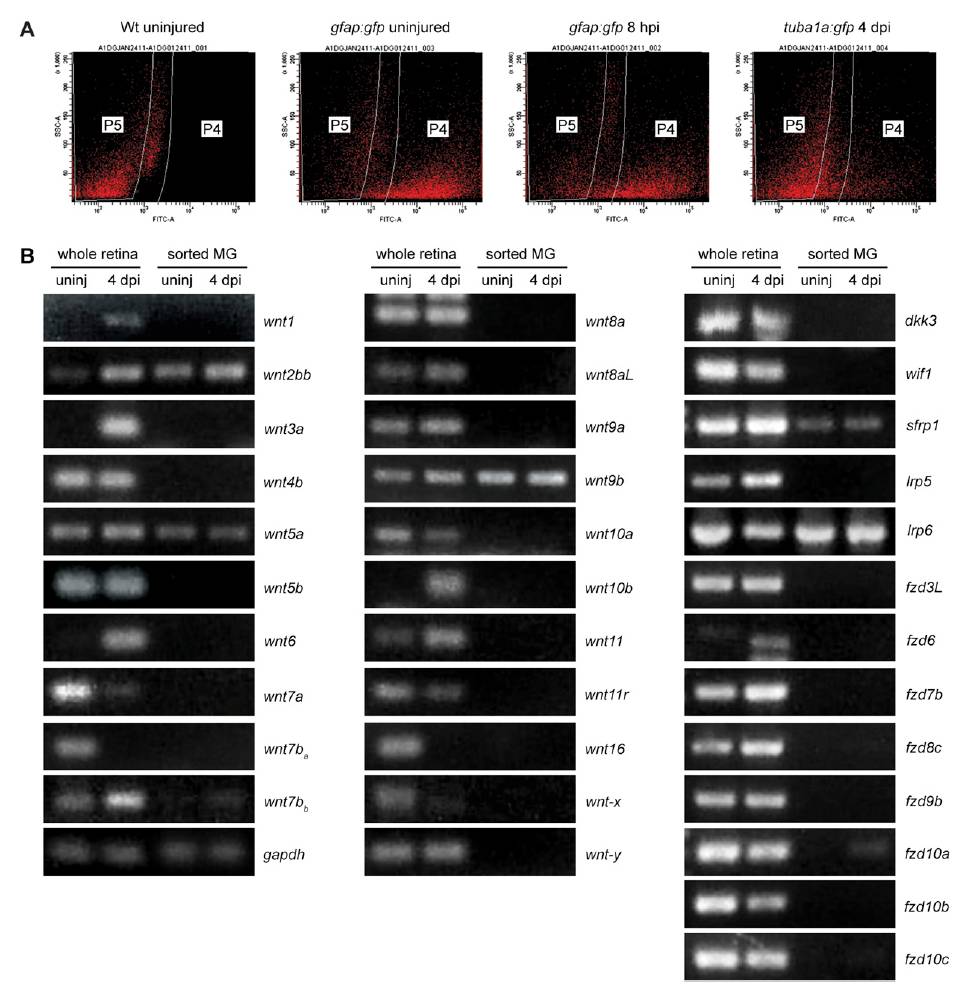

Fig. S1 FACS and Wnt component gene expression. (A) Representative scatter plots used to FACS purify GFP-expressing cells. Wild type (Wt) retinal cells do not fall into the P4 window, whereas GFP+ retinal cells from gfap:gfp and 1016 tuba1a:gfp transgenic fish retinas readily sort into this window. (B) RT-PCR analysis of injury-dependent Wnt signaling component gene expression using total retina RNA or RNA from FACS-purified MG and MG-derived progenitors. Shown are Wnt signaling component genes that do not exhibit injury-dependent regulation in purified MG.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Proc. Natl. Acad. Sci. USA
