Fig. S1
- ID
- ZDB-IMAGE-110915-17
- Genes
- Publication
- Totong et al., 2011 - The novel transmembrane protein Tmem2 is essential for coordination of myocardial and endocardial morphogenesis
- All Figures
- Figures for Totong et al., 2011
|
Figure Caption
Fig. S1

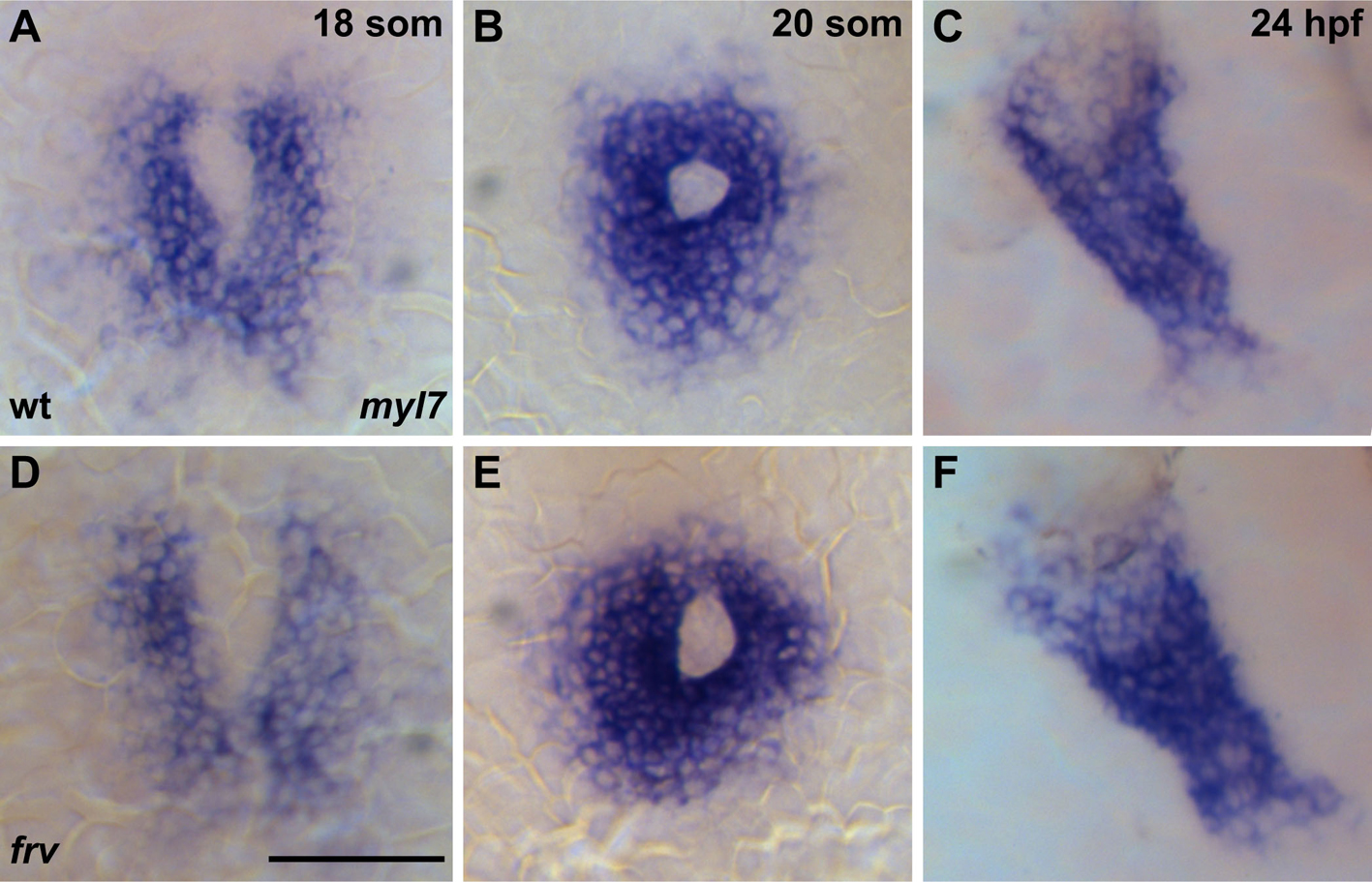

Cardiac fusion and heart tube elongation occur normally in frv mutants. Dorsal views, anterior to the top, depicting myl7 expression. (A,D) Cardiac fusion begins at the 18-somite stage (som) in both wild-type (wt) (A) and frv mutant (D) embryos. (B,E) By 20 som, cardiac fusion is complete in both wt (B) and frv mutant (E) embryos. (C,F) At 24 hpf, both wt (C) and frv mutant (F) embryos display an elongated heart tube. Similarly, examination of vmhc and amhc expression did not reveal defects in frv mutants at these stages (data not shown). Scale bar: 50 μm.
