Fig. 5

ID
ZDB-IMAGE-110712-68
Source
Figures for Burguière et al., 2011
Figure Caption

Fig. 5

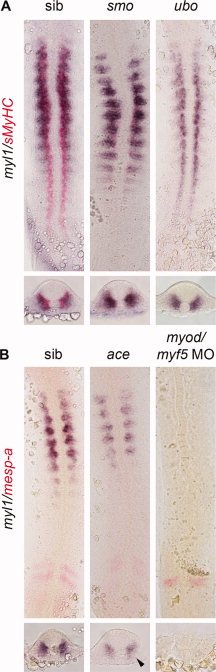

Expression of myl1 at 15-somite stage. myl1 (blue) expression is detected in the fast-twitch muscle domain of the wt embryos as well as of the smo mutant. In the Prdm1 mutant (ubo), myl1 is ectopically expressed in the adaxial cells. smyhc1 (red) labels adaxial cells. B: In FGF8a mutant (ace), myl1 (blue) expression is reduced due to loss of the lateral part of the fast domain (arrowhead in the transversal section). In MyoD/Myf5 morphantsthere is a depletion of myl1 expression. mesp-a labels somite primordia.
