Figure Caption
Fig. S1

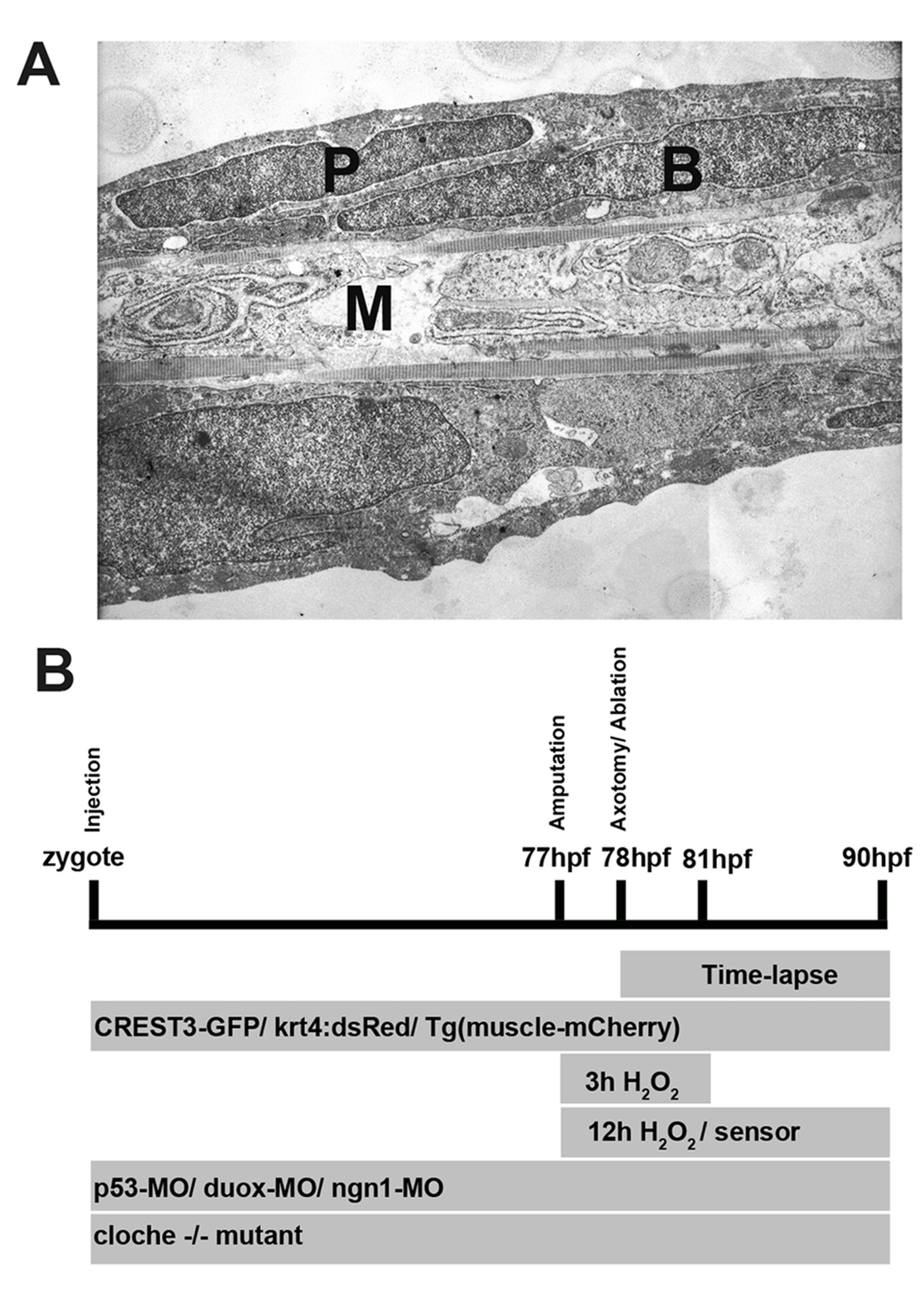

Ultrastructure of a larval fin and experimental design. (A) Transmission electron micrograph of a sagittal section through the caudal fin at 48 hpf. The skin consists of two cell layers, the outer periderm (P) and inner epidermal basal cells (B), which are separated by a basement membrane from medially located muscle (M). Magnification is 4,800×. (B) Timeline of experimental procedures. hpf, hours post fertilization.
