ZFIN Image: Takahashi et al., 2011, Fig. s2


Figure Caption

Fig. s2

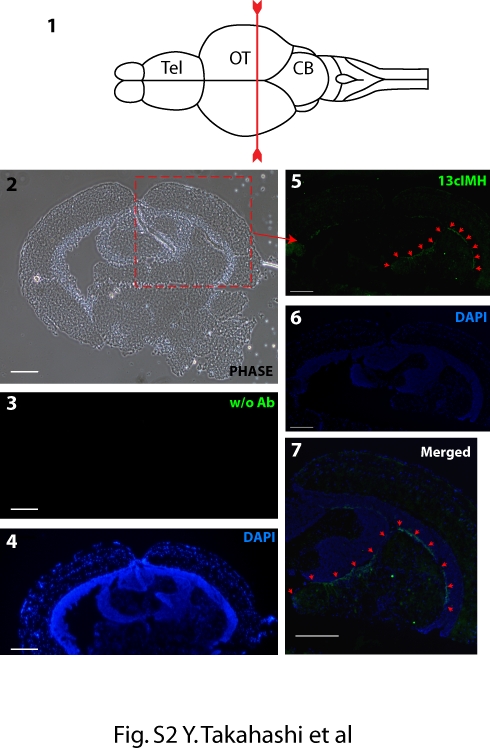

Immunohistochemistry of the cross section at the optic tectum of zebrafish brain. (1) The diagram shows zebrafish brain (modified from Castro, A. et al. [3]) and a line indicates the cutting line. Tel; Telencephalon, OT; Optic Tectum CB; Cerebellum. (2) A phase contrast image of a cross section of zebrafish brain. (3, 4) The brain section was incubated without the monoclonal antibody for 13cIMH (Negative control, 3; FITC channel, 4; DAPI). (5-7) The brain section was incubated with the monoclonal antibody for 13cIMH. Green fluorescence signals, indicated by red arrows, for 13cIMH (5; 13cIMH, 6; DAPI, 7; merged) were detected in the preventricular grey zone (PGZ) of optic tectum (OT). Scale bar = 200 μm.
