ZFIN Image: Madelaine et al., 2011, Fig. 5


Figure Caption

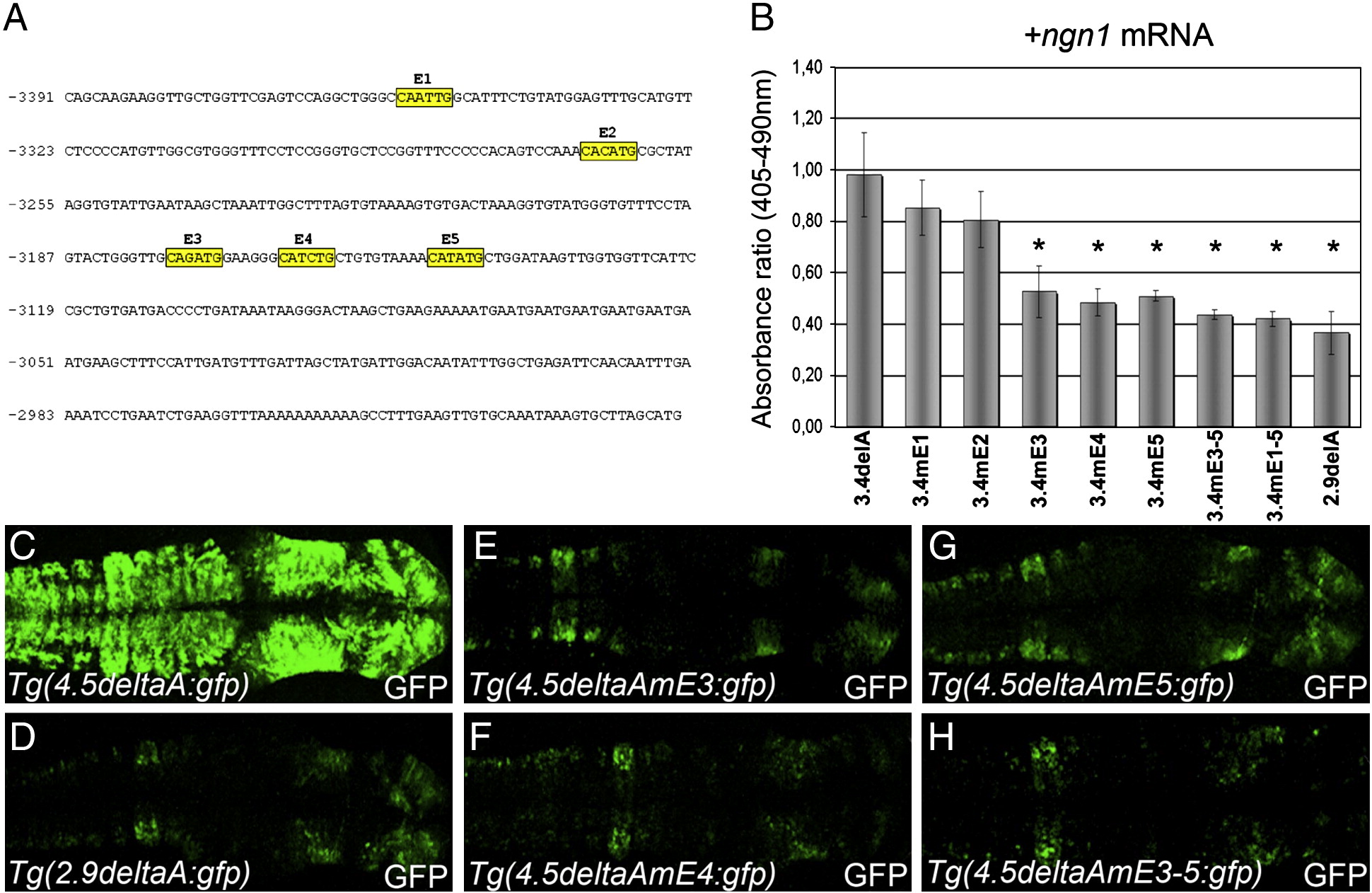

Fig. 5 E-boxes are required for the transcriptional regulation of deltaA by Ngn1.

(A) Nucleotide sequence of genomic DNA located between -3.4 and -2.9 kb upstream of the DeltaA coding region. Yellow boxes highlight the five E-boxes in this sequence. (B) Histogram showing the ratio of CAT levels after the mis-expression of various promoter:reporter constructs and synthetic ngn1 mRNA. CAT expression levels were normalized against LacZ driven off the 7.1deltaA:LacZ fragment. (C–H) Confocal projections after immunohistochemical detection of GFP showing expression in the anterior neural tube in a series of stable transgenic embryos at 24 hpf. Whereas Tg(4.5deltaA:GFP) embryos show strong and widespread GFP expression (C) the Tg(2.9deltaA:GFP) transgene drives weaker GFP expression in a more restricted pattern (D). Transgenic lines where individual E-box (E–G) or the three clustered E-boxes were mutated (H) display GFP expression similar to Tg(2.9deltaA:GFP). Embryos are viewed dorsally and mounted with anterior to the right. Error bars represent s.d. *P < 0.05; **P < 0.001; ***P < 0.0005 using a t-test.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 350(1), Madelaine, R., and Blader, P., A cluster of non-redundant Ngn1 binding sites is required for regulation of deltaA expression in zebrafish, 198-207, Copyright (2011) with permission from Elsevier. Full text @ Dev. Biol.
