Figure Caption

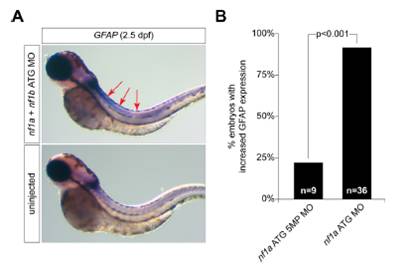

Fig. S4 MO knockdown of the nf1a and nf1b results in neural defects. (A) At 2.5 dpf, nf1a/nf1b compound morphant zebrafish embryos display a marked increase in the intensity and domain of GFAP expression by whole-mount in situ hybridization when compared with stage-matched controls. (B) Some 92% of nf1a ATG morphant embryos were scored as having high levels of GFAP expression as compared with 22% of nf1a ATG 5MP MO (nf1a ATG 5-mispair control MO)-injected embryos by blinded qualitative analysis (P < 0.001).
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Proc. Natl. Acad. Sci. USA
