Fig. S7

ID: ZDB-IMAGE-101011-25
Publication: Erickson et al., 2010 - Meis1 specifies positional information in the retina and tectum to organize the zebrafish visual system
All Figures: Figures for Erickson et al., 2010


Figure Caption

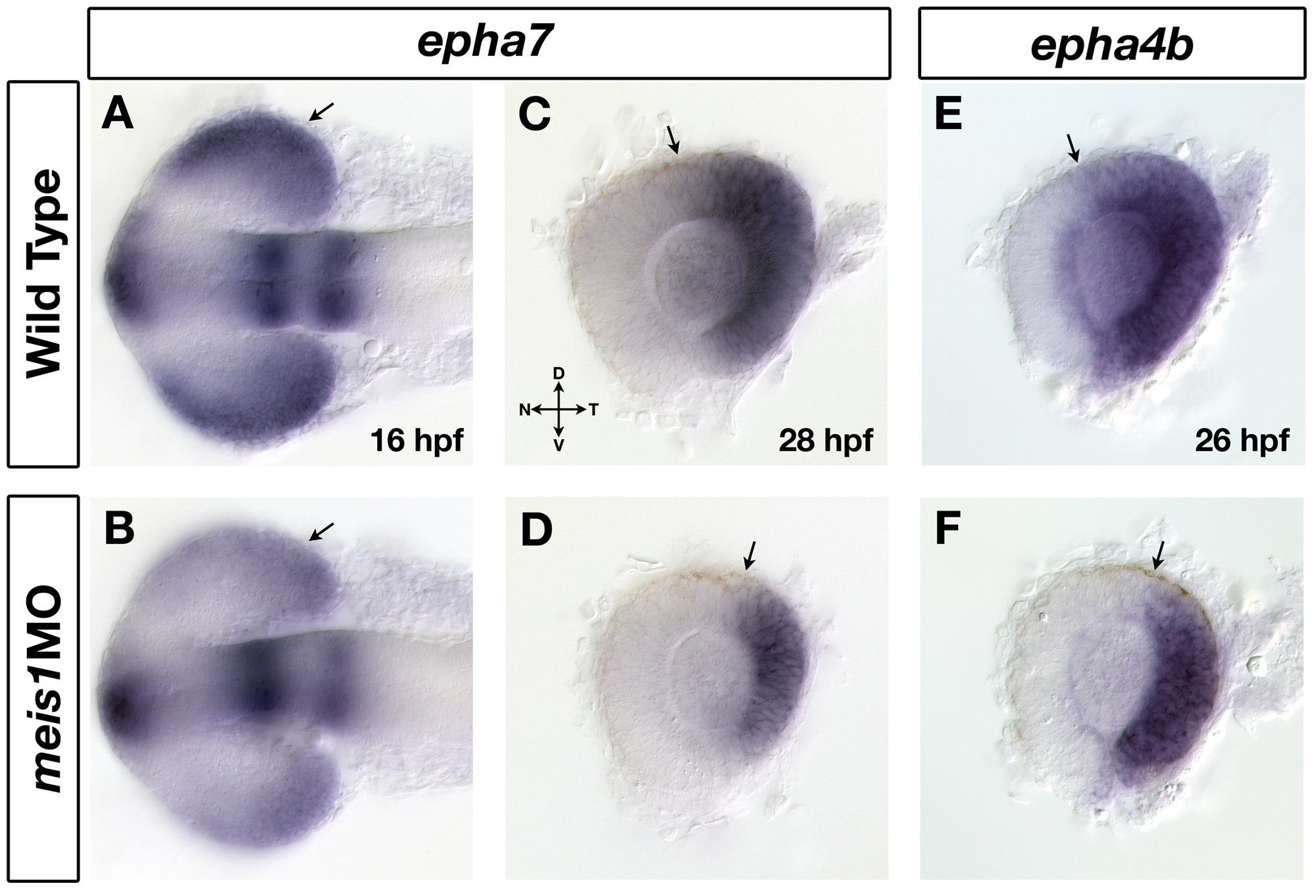

Fig. S7 The temporal expression domains of epha7 and epha4b are reduced in meis1 morphants. (A, B) mRNA in situ hybridization (ISH) for epha7 on wild-type (A) and ,i>meis1 morphant (B) embryos at 16 hpf. Arrows indicate the expression of epha7 in the presumptive temporal retina. Embryos are shown in dorsal view with anterior to the left. (C-F) mRNA ISH for the temporal markers epha7 (C, D) and epha4b (E, F) in dissected, flat-mounted eyes from 26- to 28-hpf wild-type and meis1 morphant embryos. Arrows indicate the dorsal extent of gene expression. Representative dissected eyes are shown. Legend for retinal axial orientation: D, dorsal; V, ventral; N, nasal; T, temporal.
