ZFIN Image: Vaccari et al., 2010, Fig. S7


Figure Caption

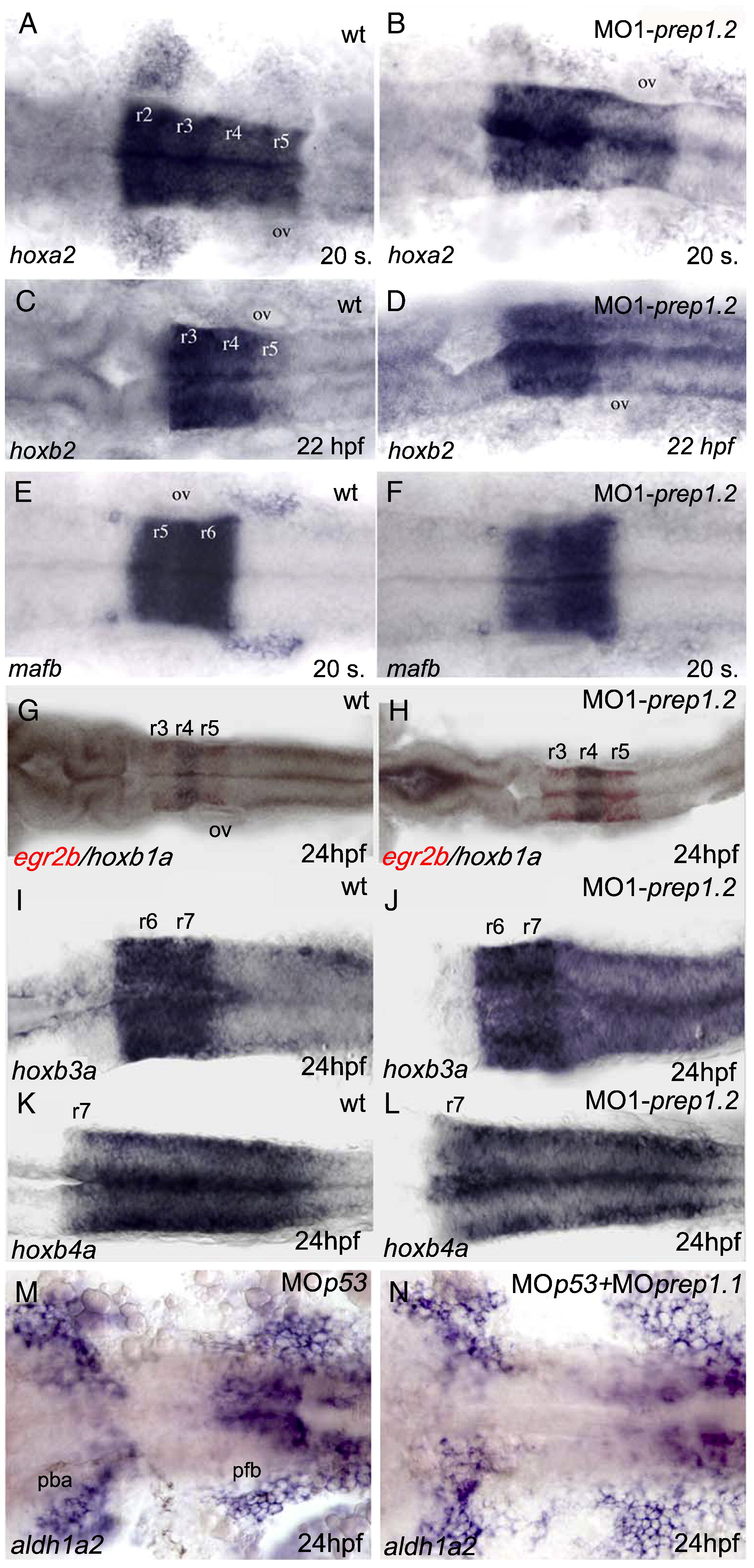

Fig. S7 prep1.1 and prep1.2 have non-overlapping functions in hindbrain and head mesenchyme, respectively. A–L: marker expression shows mild differences in the hindbrain between controls (left column) and embryos injected with MO1-prep1.2 (right column). C–D and I–J: expression of hoxb2 and hoxb3a is upregulated posterior to r5 and r7, respectively. E–F: reduction of mafb expression in the NCC of the third stream of prep1.2 morphants. M, N: similar aldh1a2 expression in the prospective branchial arches and pectoral fin buds of MO1-prep1.1 injected embryos and their control. All embryos are in dorsal views with anterior to the left. ov: otic vesicle; pba: prospective branchial arches; pfb: pectoral fin bud; r: rhombomere.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 343(1-2), Vaccari, E., Deflorian, G., Bernardi, E., Pauls, S., Tiso, N., Bortolussi, M., and Argenton, F., prep1.2 and aldh1a2 participate to a positive loop required for branchial arches development in zebrafish, 94-103, Copyright (2010) with permission from Elsevier. Full text @ Dev. Biol.
