Fig. 2

ID
ZDB-IMAGE-100603-21
Genes
Source
Figures for Deacon et al., 2010
Figure Caption

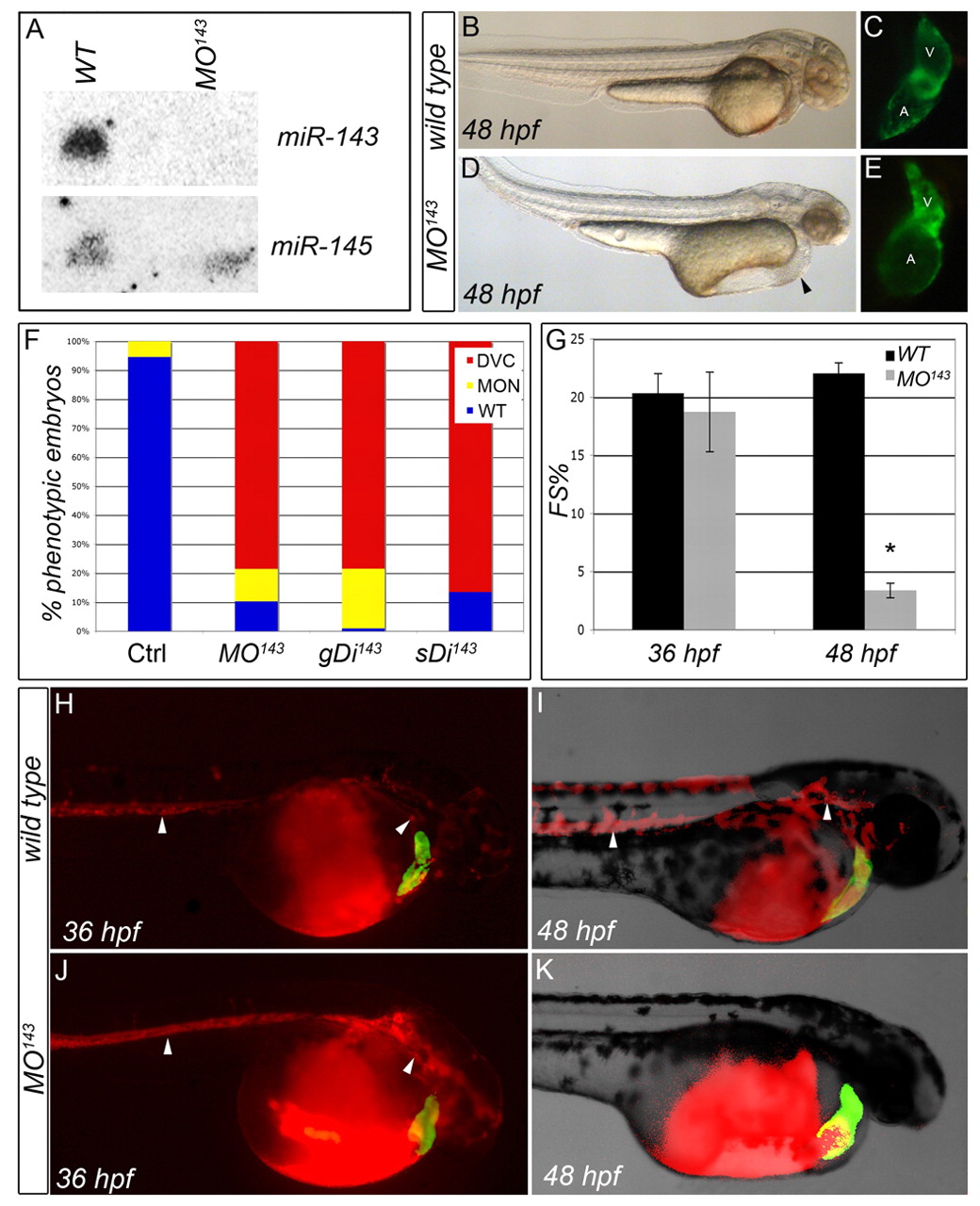

Fig. 2 Inhibition of miR-143 biosynthesis results in structural malformations of the cardiac chambers and decreased cardiac function. (A) Northern analysis. No mature miR-143 can be visualized in MO143 zebrafish embryos, whereas miR-145 expression appears unaltered. (B-E) Inhibition of miR-143 biosynthesis results in ventricular collapse and atrial dilation. Lateral views (anterior to the right) are shown of control and MO143-injected Tg(cmlc2::GFP) embryos at 48 hpf imaged under transmitted (B,D) and fluorescent (C,E) light. Arrowhead in D indicates pericardial edema. (F-K) Inhibition of miR-143 compromises ventricular function between 36 and 48 hpf. (F) The percentage of animals with a contractile defect at 48 hpf elicited by three independent morpholinos. DVC, decreased ventricular contractility (red); MON, monster (alive but severely deformed and not accurately scorable for the heart defect; yellow); WT, wild type (blue). (G) Contractility as percentage fractional shortening (FS%) in WT and MO143 hearts at 36 and 48 hpf. *, P=8.03x10-15; error bars represent ± s.e.m. (H-K) Microangiography of WT and MO143 embryos at 36 and 48 hpf. Arrowheads indicate circulating beads in the head and trunk. Red, beads; green, myocardium.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Development
