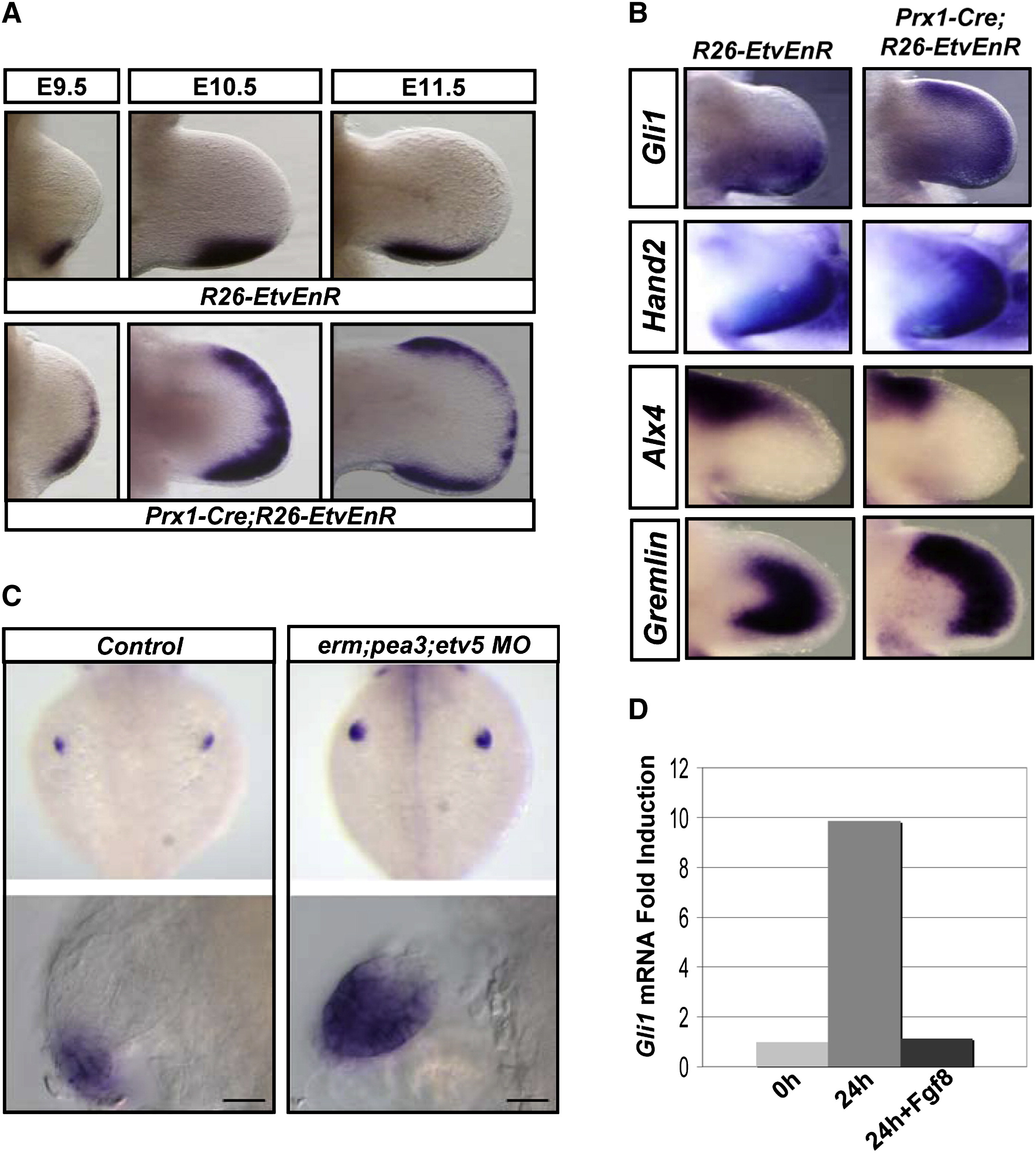

Fig. 3 Ectopic Activation of Shh and Shh Targets Results from an Inhibition of Etv-Dependent Regulation

(A) Shh expression at different stages of limb development in R26-EtvEnR and Prx1-Cre;R26-EtvEnR embryos.

(B) Expression of Gli1, Hand2, Alx4, and Gremlin transcripts in the limb buds of R26-EtvEnR and Prx1-Cre;R26-EtvEnR embryos at E10.5.

(C) Dorsal view of Shh expression in the zebrafish pectoral fin bud 48 hr postfertilization (upper); a higher-magnification view (lower). The scale bars represent 0.02 mm.

(D) Quantitative real-time PCR analysis of Gli1 mRNA levels after culturing of anterior limb bud cells for 24 hr in the presence or absence of Fgf8.
