Figure Caption

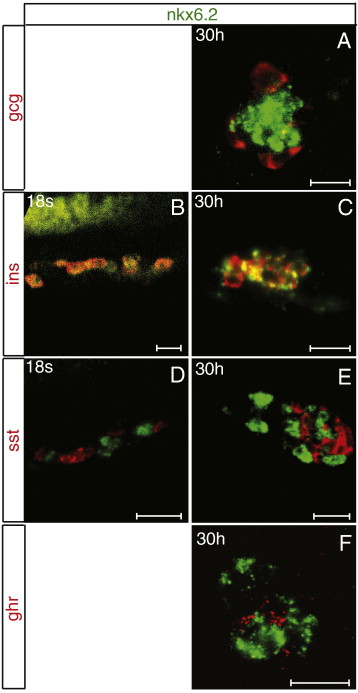

Fig. S1 Comparison of nkx6.2 expression with that of pancreatic hormone genes at various stages. Double fluorescent WISHs showing expression of nkx6.2 and glucagon (A), insulin (B–C), somatostatin (D–E), or ghrelin (F) at 18 somites (B, D) and at 30 hpf (A, C, E, F). Z-plane confocal images. A, C–F: Ventral views. B: Lateral views with anterior part to the left. Scale: 20 μm.
