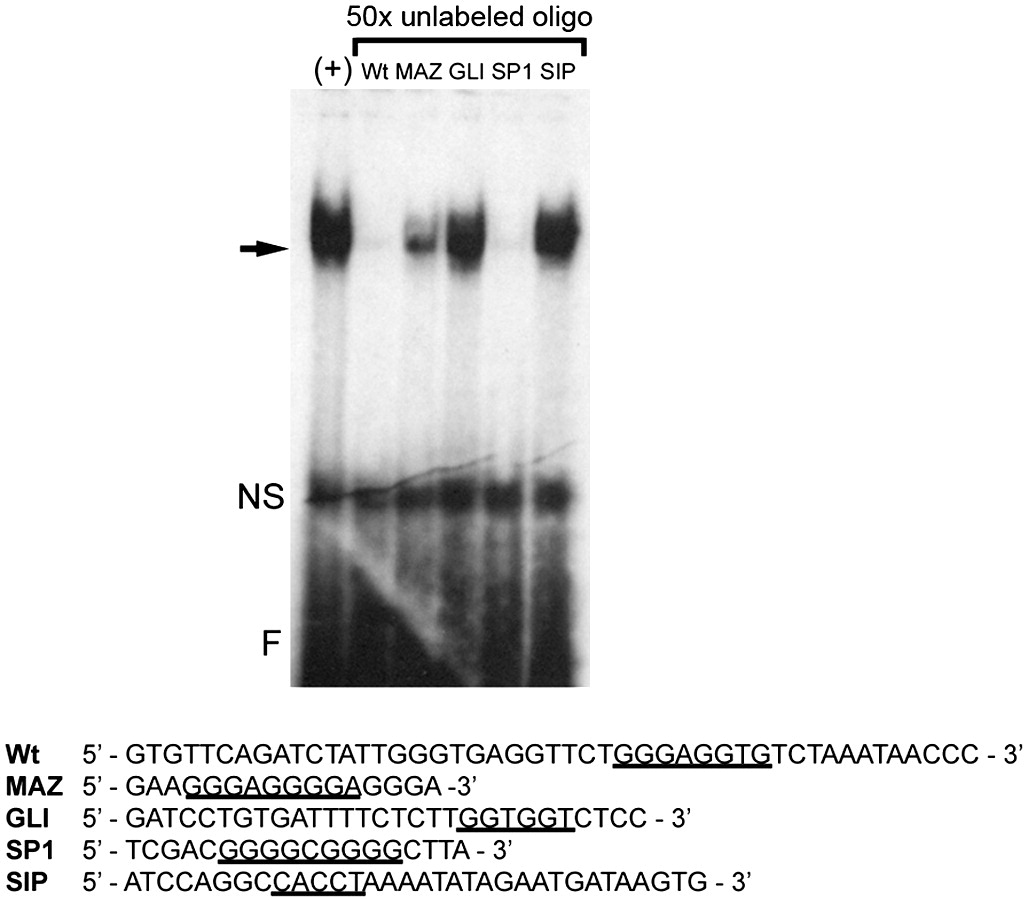

Fig. S3 The Sp1 consensus sequence can compete for nuclear protein binding to the G/C-rich enhancer. Electrophoretic mobility shift assay showing the Sp1 consensus binding site probe can efficiently compete nuclear protein binding to the G/C-rich enhancer. Below the gel are shown the oligonucleotide sequences of consensus protein binding sites for myc-associated zinc finger protein (MAZ), GLI, specificity protein 1 (SP1), and smad interacting protein (SIP) used as unlabeled competitors. Consensus binding sites are underlined. The arrow marks specific protein binding. NS, Nonspecific binding; F, free probe.
