Figure Caption

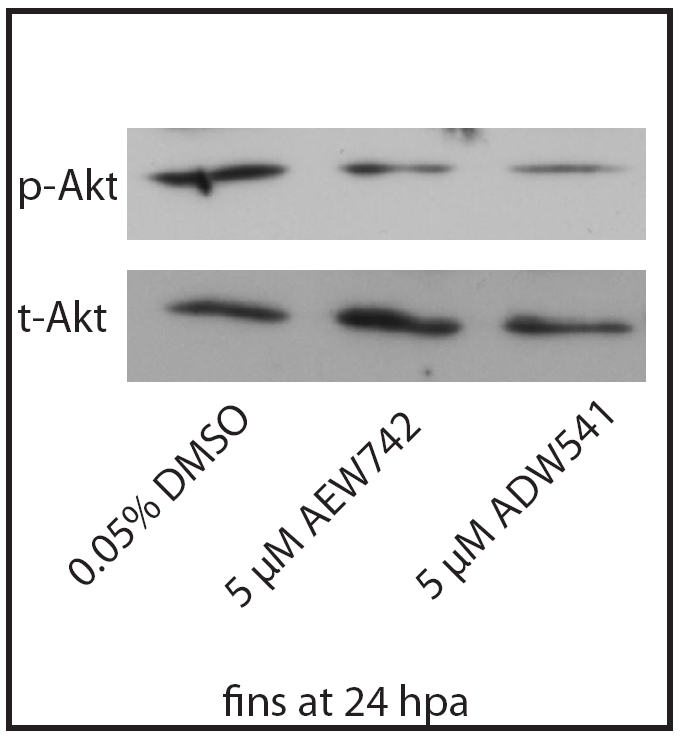

Fig. S2 NVP-AEW541 and NVP-ADW742 block Akt phosphorylation in zebrafish fins. Western blots for phospho-Akt (p-Akt) and total-Akt (t-Akt) were prepared from regenerating fins at 24 hpa treated with 0.05% DMSO (control), 5 μM NVP-AEW54 or 5 μM NVP-ADW742. A marked decrease of p-Akt is observed after treatment with NVP-AEW541 and NVP-ADW742. t-Akt was used as a loading control.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Development
