Fig. 6

ID
ZDB-IMAGE-100302-28
Genes
Source
Figures for Drerup et al., 2010
Figure Caption

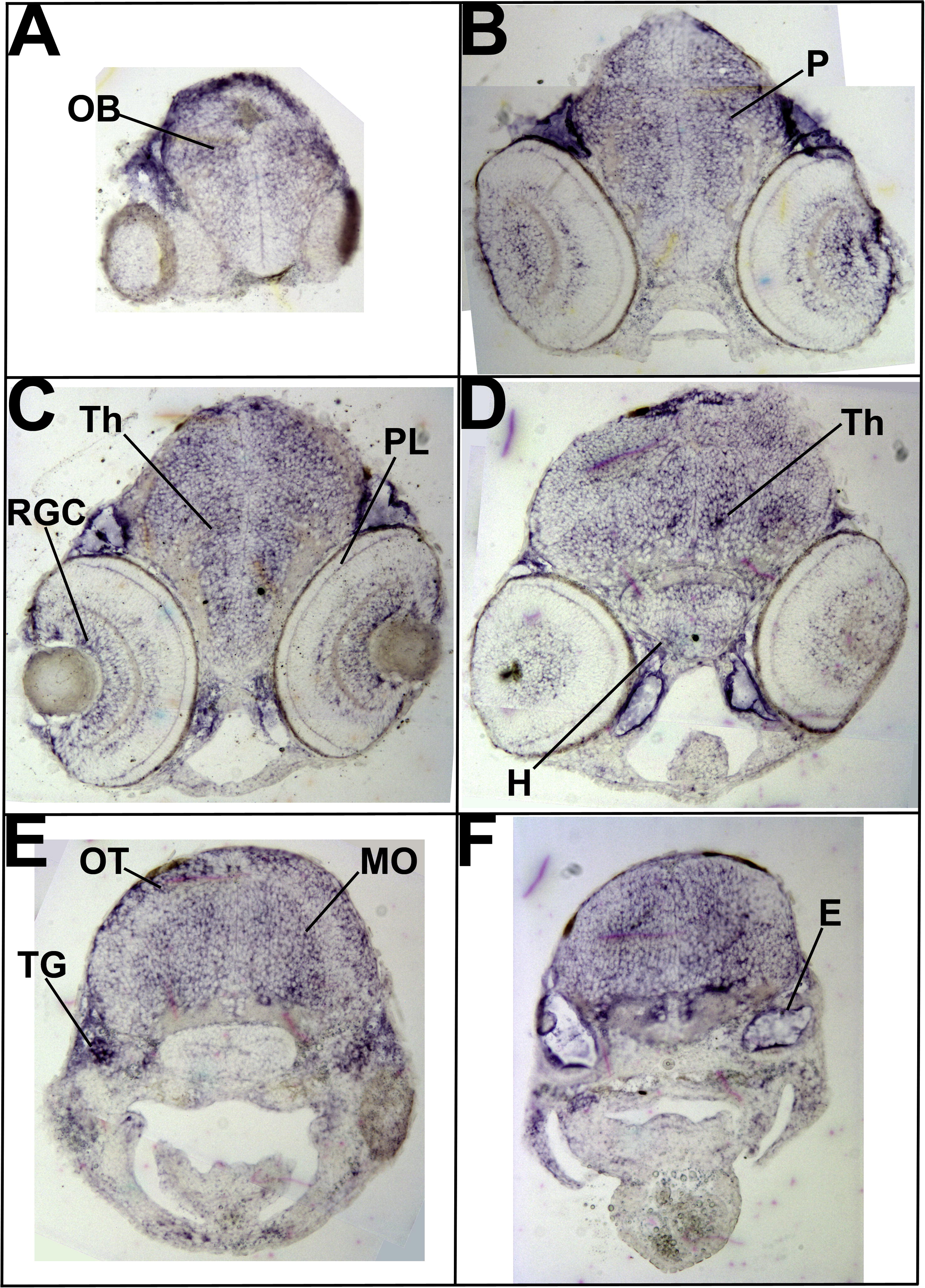

Fig. 6 lis1b expression in the larval zebrafish brain at 72 hpf. In situ hybridization with a lis1b specific riboprobe demonstrates almost ubiquitous expression throughout the developing zebrafish brain. (A and B) Similar to lis1a, lis1b is expressed in the olfactory bulb, pallium, and subpallium. (C and D) High expression of lis1b is also detectable in the diencephalon. In the 72 hpf zebrafish eye (C), lis1b is expressed in the retinal ganglion cell layer and photoreceptor cell layer. (E and F) Hindbrain expression of lis1b includes the optic tectum and medulla oblongata. In addition, similar to lis1a, lis1b is expressed in the trigeminal ganglion and ear. Abbreviations used: OB, olfactory bulb; P, pallium; Th, thalamus; RGC, retinal ganglion cell layer; PL, photoreceptor cell layer; H, hypothalamus; TG, trigeminal ganglion; OT, optic tectum; MO, medulla oblongata; E, ear.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene expression patterns : GEP, 10(1), Drerup, C.M., Wiora, H.M., and Morris, J.A., Characterization of the overlapping expression patterns of the zebrafish LIS1 orthologs, 75-85, Copyright (2010) with permission from Elsevier. Full text @ Gene Expr. Patterns
