Fig. 48

ID: ZDB-IMAGE-091217-38
Publication: Parichy et al., 2009 - Normal table of postembryonic zebrafish development: Staging by externally visible anatomy of the living fish
All Figures: Figures for Parichy et al., 2009


Figure Caption

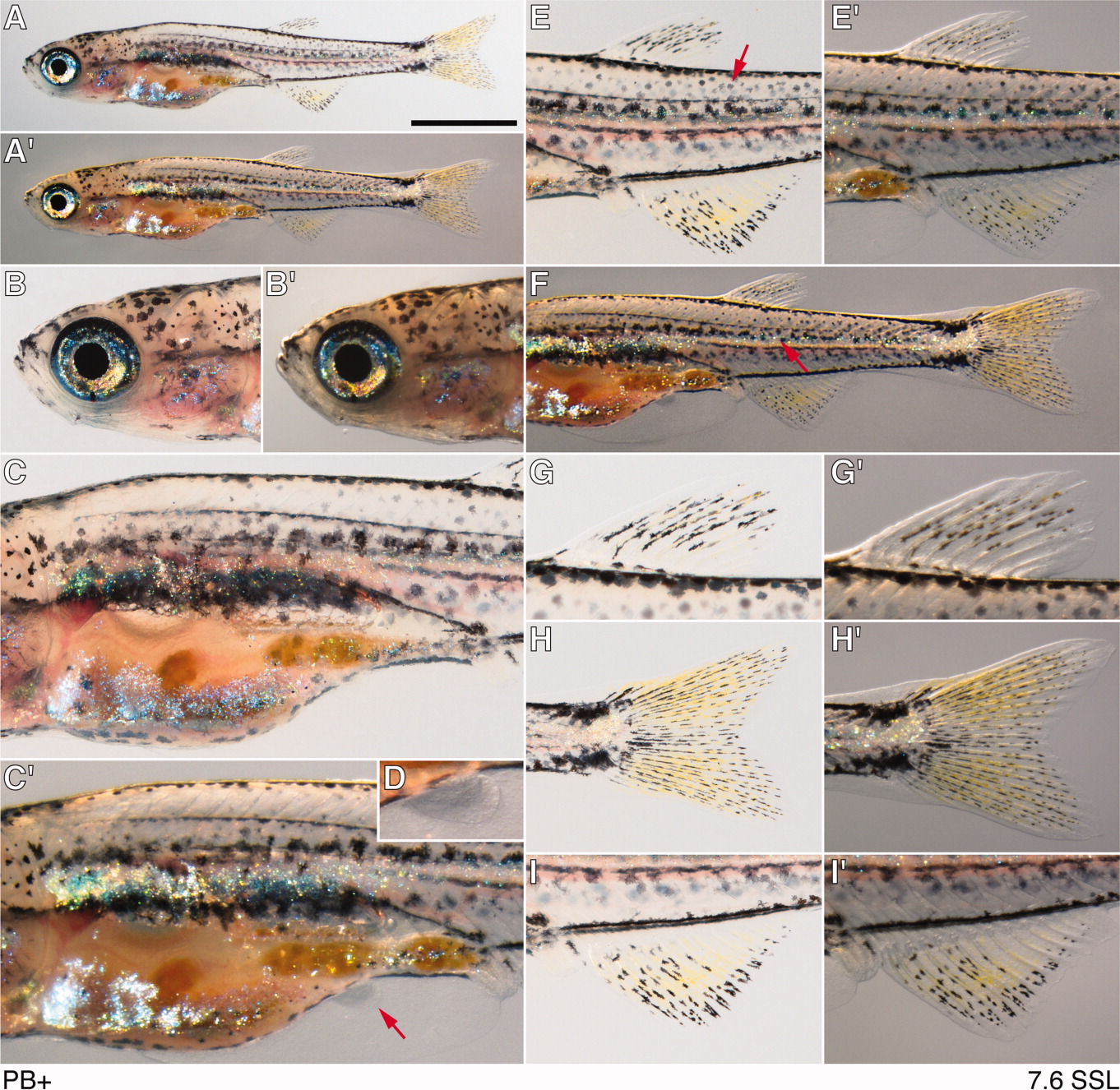

Fig. 48 Following pelvic fin bud appearance; PB+, 7.6 mm SL (standard length). A,A′: Whole body. Scale bar = 2 mm. B,B′: Head. C,C′: Anterior and middle trunk showing pelvic fin bud (arrow). D: Pelvic fin bud showing condensed mesenchyme without rays. E,E′: Middle trunk showing dorsal and anal fins as well as pigment pattern. Metamorphic melanophores are more fully melanozed and are scattered over the flank (e.g., arrow). F: Posterior trunk showing resorption of fin fold and extended line of iridophores (arrow) beneath the horizontal myoseptum. G,G′: Dorsal fin, showing xanthophores in addition to melanophores. H,H′: Caudal fin. I,I′: Detail of anal fin.
