Fig. S1

ID: ZDB-IMAGE-091215-56
Publication: Lee et al., 2009 - Notch Signaling Functions as a Cell-Fate Switch between the Endothelial and Hematopoietic Lineages
All Figures: Figures for Lee et al., 2009


Figure Caption

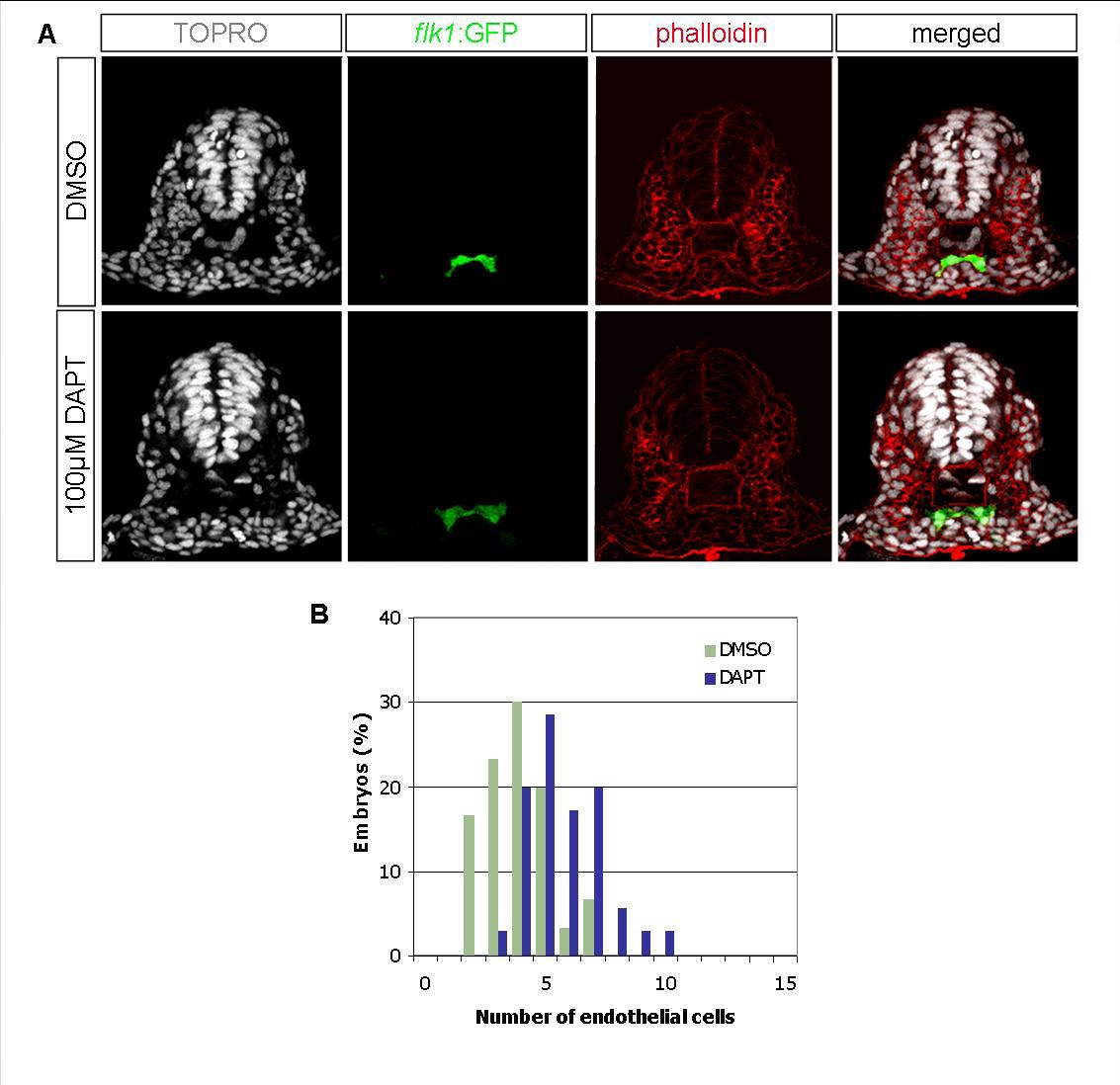

Fig. S1 DAPT Treatment Leads to an Increased Number of Endothelial Cells at the Fifth Somite Level
(A) Transverse sections of 18 hpf embryos, DMSO- or DAPT-treated, visualized for TOPRO (white), kdrl:GFP (green), and phalloidin (red). (B) Quantification of endothelial nuclei per focal plane in DMSO-treated (n=30) or DAPT-treated (n=35) embryos. Embryos treated with DAPT contained 5.74 (s=1.37) endothelial nuclei, while those treated with DMSO had 3.93 (s=1.57) nuclei per section (ANOVA, p<10^-5), indicating that the effect of Notch signaling on the number of endothelial cells is not limited to specific regions within the embryos.
