ZFIN Image: Tan et al., 2009, Fig. 5


Figure Caption

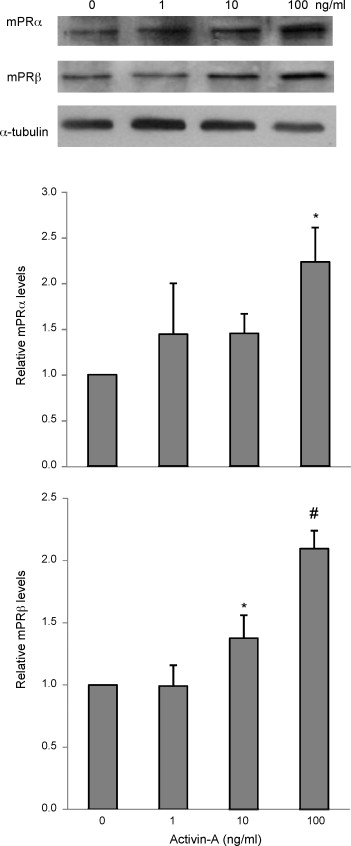

Fig. 5 Activin-A increases mPRα and mPRβ expression in a dose-dependent manner. Mid- to late growth phase follicles were treated with Cortland′s medium or activin-A at a dose of 1, 10, or 100 ng/ml for 18 h. At the end of the experiment, proteins were extracted from follicles and expression of mPRα and mPRβ was determined by Western blotting probed by anti-mPRα and mPRβ antibodies. Equal loading was confirmed by Western blotting probed with an anti-α-tubulin antibody. Histograms show normalized densitometry data (mean ± S.E.M.) from three experiments. *p < 0.05 vs. control. ^#p < 0.05 vs. control and activin 1 ng/ml groups.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Molecular and Cellular Endocrinology, 312(1-2), Tan, Q., Zagrodny, A., Bernaudo, S., and Peng, C., Regulation of membrane progestin receptors in the zebrafish ovary by gonadotropin, activin, TGF-beta and BMP-15, 72-79, Copyright (2009) with permission from Elsevier. Full text @ Mol. Cell. Endocrinol.
