Fig. 2

ID
ZDB-IMAGE-090831-26
Genes
Source
Figures for Berberoglu et al., 2009
Figure Caption

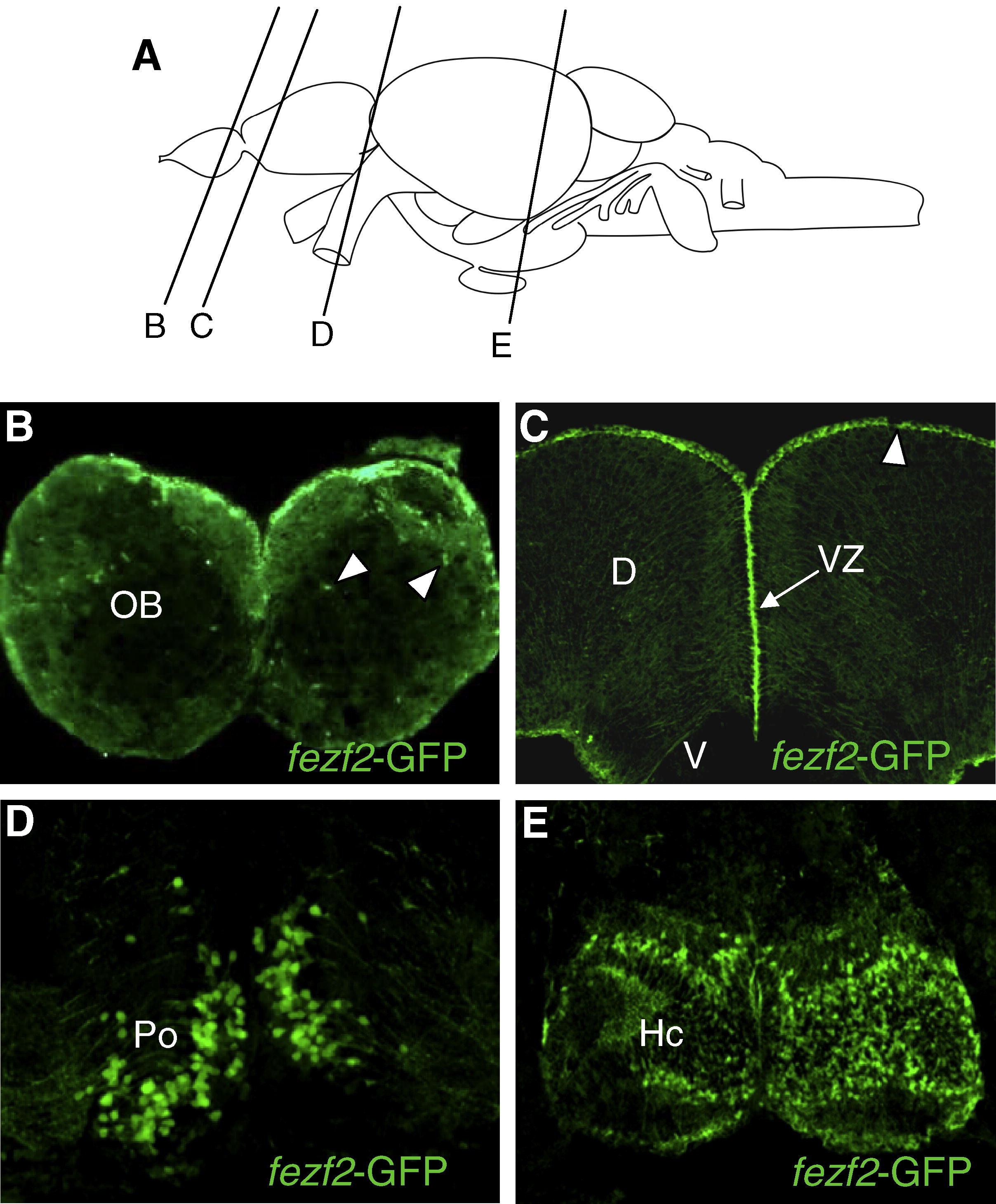

Fig. 2 fezf2-GFP transgenic line drives reporter expression in a similar pattern as fezf2 transcripts. (A) Schematic of adult zebrafish brain showing plane of section in B–E. (B) Coronal section through caudal olfactory bulb showing fezf2 expression broadly in the periphery as well as additional fezf2-GFP+ cells in the more internal layers (arrowheads) (20x magnification). (C) Coronal section through telencephalon showing fezf2 expression in the pallial ventricular zone (20x magnification). Note that GFP expression is also observed at the dorsal telencephalic ventricular surface (arrowhead), which is not seen with fezf2 mRNA expression. (D) Coronal section showing fezf2 expression in the preoptic region (40x magnification). (E) Coronal section showing fezf2 expression in the hypothalamus (40x magnification). Schematic modified from Wullimann et al., 1996. Abbreviations: OB, olfactory bulb; D, dorsal telencephalon; V, ventral telencephalon; VZ, ventricular zone; Po, preoptic region; Hc, caudal hypothalamus.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene expression patterns : GEP, 9(6), Berberoglu, M.A., Dong, Z., Mueller, T., and Guo, S., fezf2 expression delineates cells with proliferative potential and expressing markers of neural stem cells in the adult zebrafish brain, 411-422, Copyright (2009) with permission from Elsevier. Full text @ Gene Expr. Patterns
