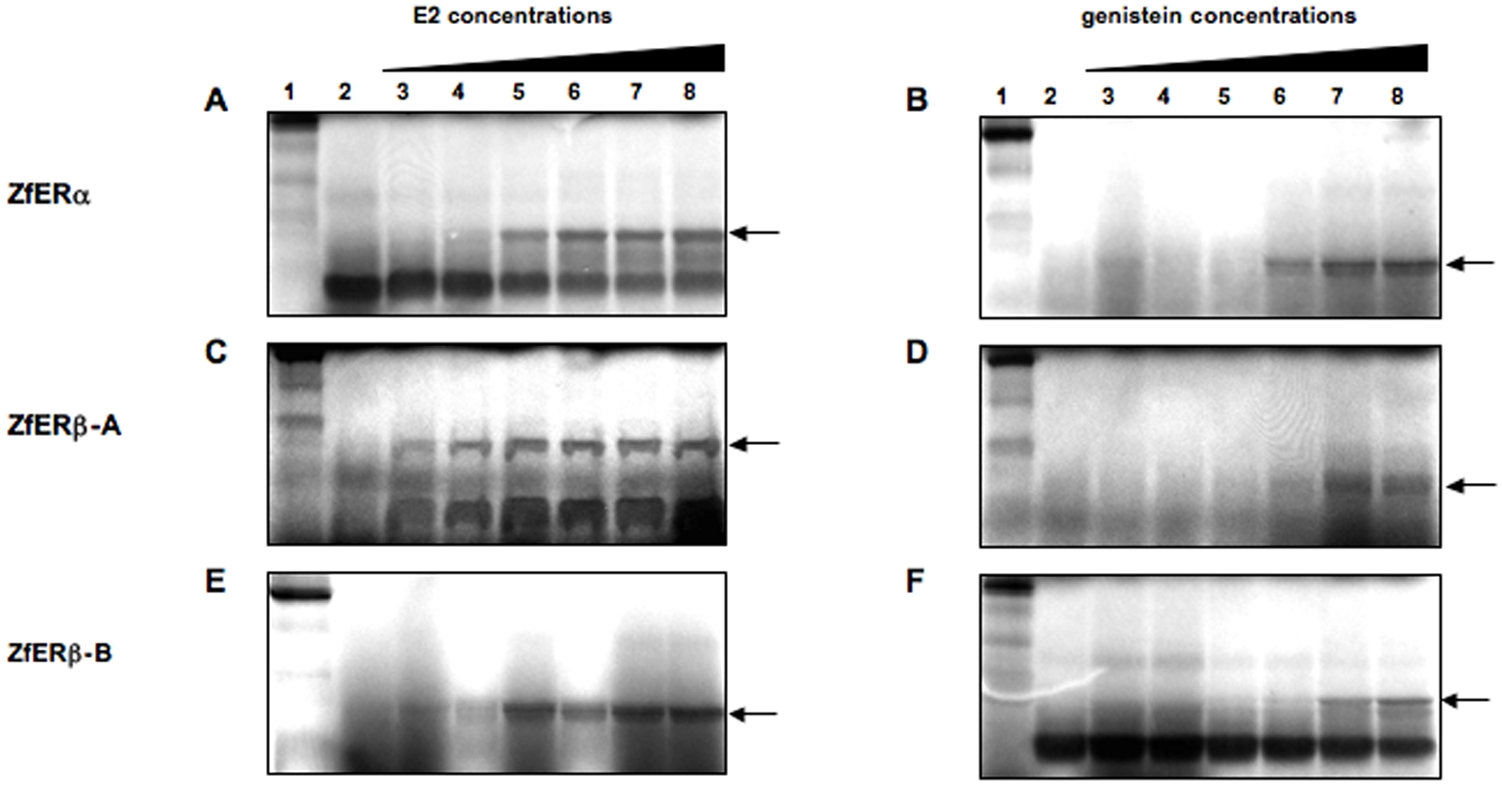

Fig. 4 Genistein binds the three zebrafish ERs.
Limited proteolysis assays of in vitro translated zebrafish ERα, ERβ-A and ERβ-B with E2 as ligand (A,C,E, respectively) and genistein as ligand (B,D,F, respectively). For each proteolysis panel, the first line represents the undigested protein, line 2 shows digestion of the receptor in the absence of ligand, lines 3 to 8 show digestion of the receptor in the presence of 10 fold increased concentrations of E2 and genistein from 10-8 M to 10-3 M.
