Fig. S6
- ID
- ZDB-IMAGE-090320-79
- Publication
- Jing et al., 2009 - Wnt signals organize synaptic prepattern and axon guidance through the zebrafish unplugged/MuSK receptor
- All Figures
- Figures for Jing et al., 2009
|
Fig. S6

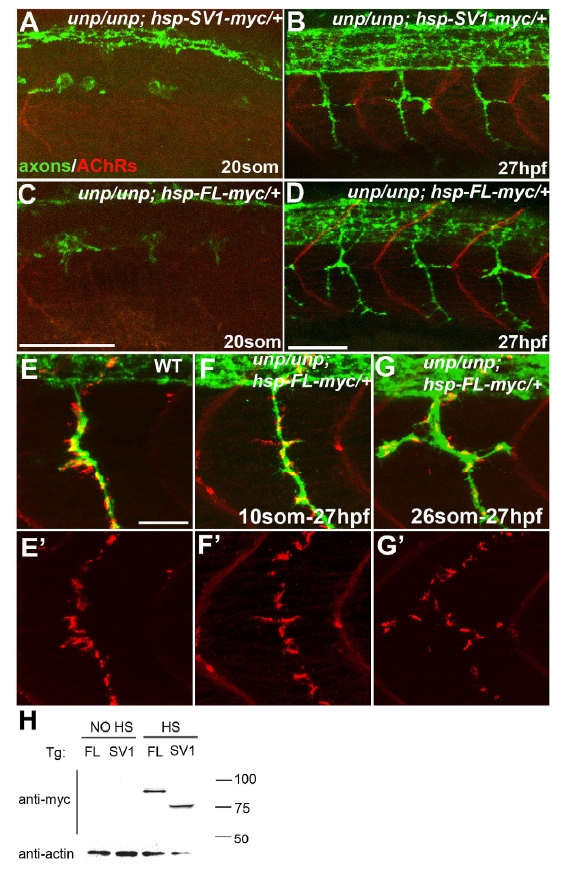

Formation of neural synapses can occur independent of AChR prepatterning.
