Fig. 5

ID
ZDB-IMAGE-090320-5
Source
Figures for Navratilova et al., 2009
Figure Caption

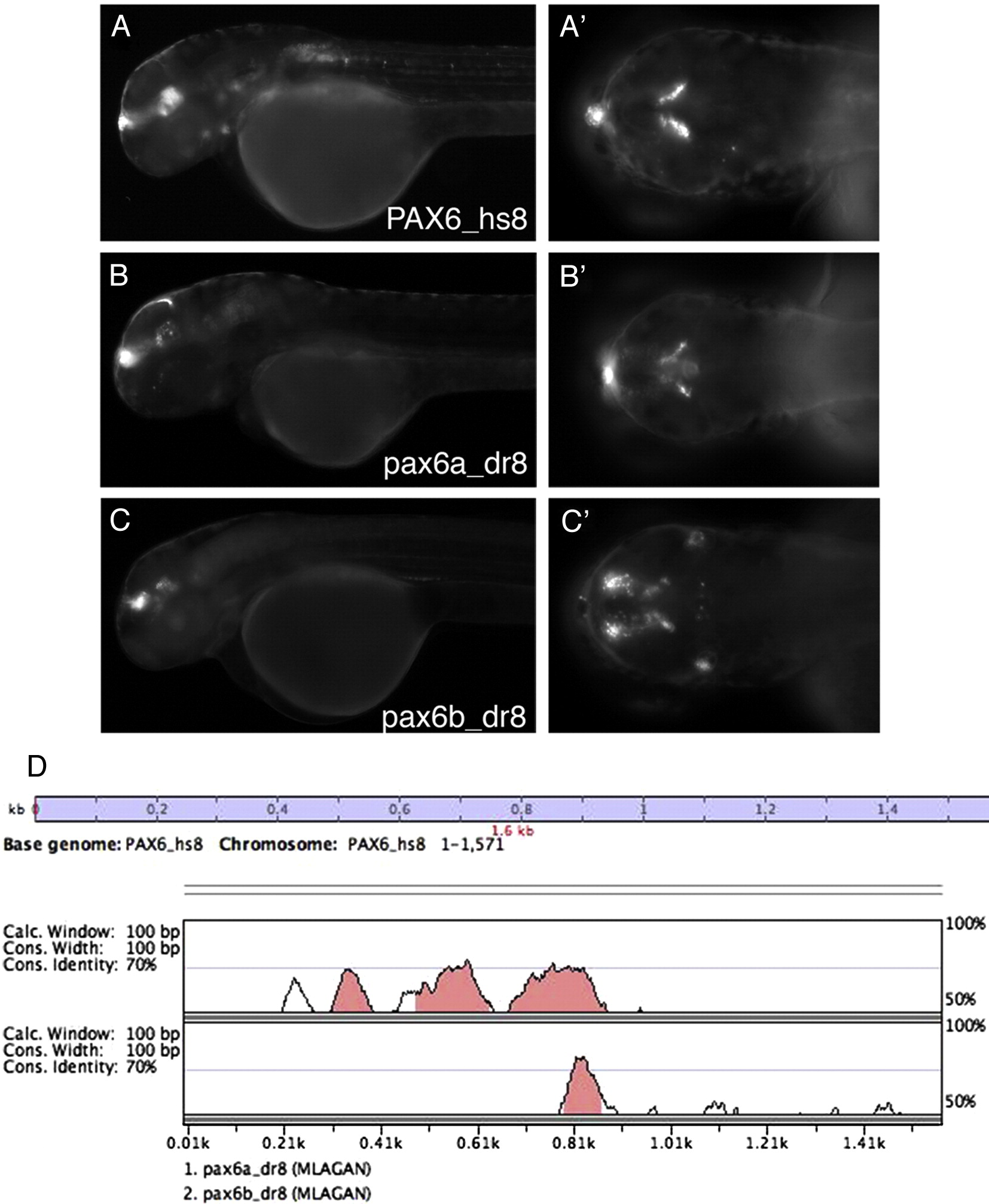

Fig. 5 Expression driven by PAX6 HCNE8, human and both zebrafish orthologous sequences. (A–C′) All sequences drive expression to pineal and diencephalon. Left column shows lateral views of 3 days old embryos, right column dorsal views of heads of the same larvae. The signals differ in relative intensity in these structures between human PAX6/pax6a/pax6b. (D) VISTA conservation plot of the alignment of zebrafish pax6a_dr8 and pax6b_dr8 with PAX6_hs8 (baseline) indicating asymmetrical divergence of the zebrafish duplicates. Common peak indicates core HCNE.
