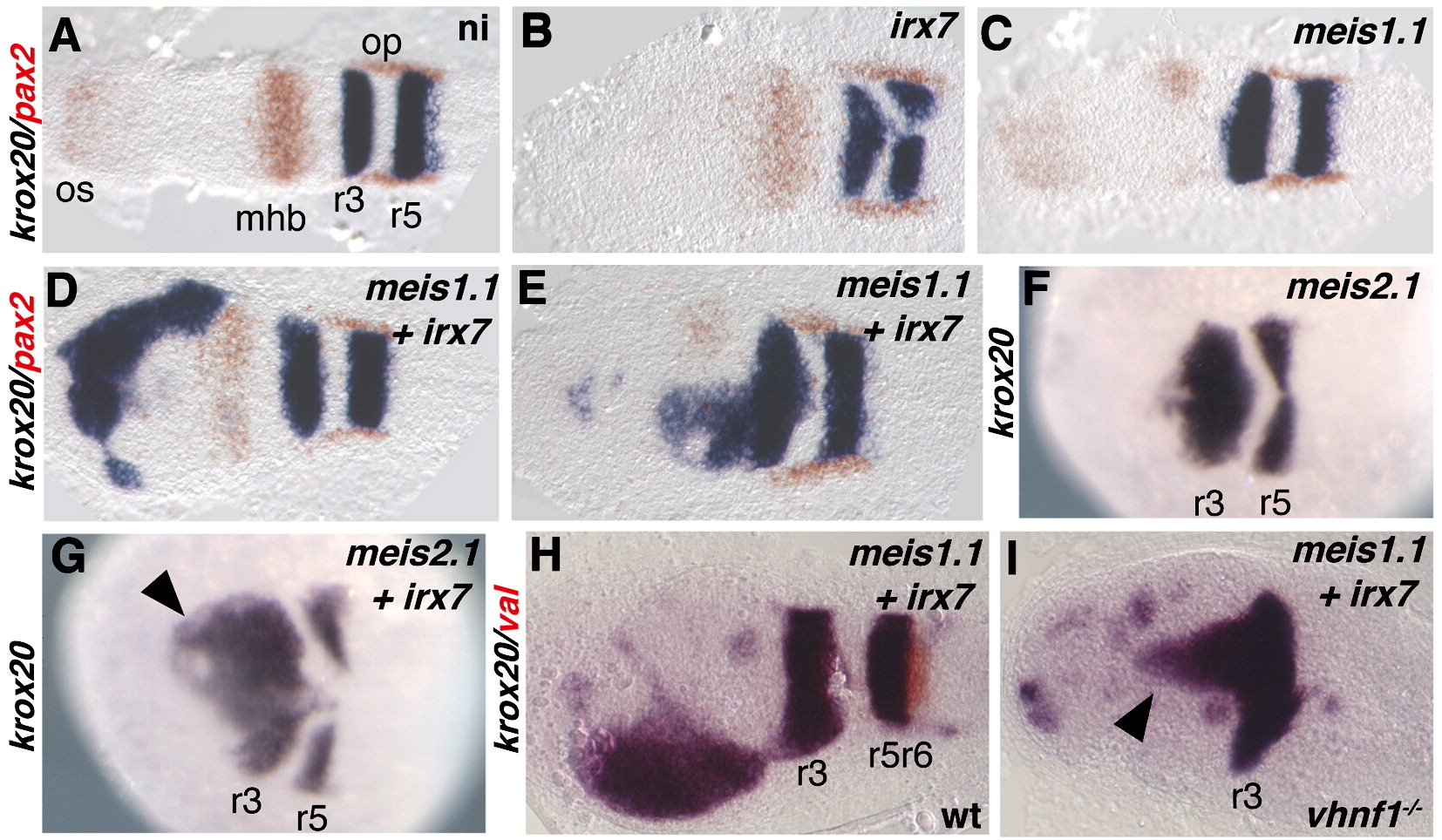

Fig. 3 Coinjection of irx7 and meis1.1 RNAs leads to ectopic expression of krox20 in the anterior neural plate. Embryos uninjected (A) or injected with RNAs for irx7 (B), meis1.1 (C),meis1.1 and irx7 (D, E, H, I), meis2.1 (F), meis2.1 and irx7 (G) were stained by ISH with probes indicated on the left and colour-coded. Panels A–H are wild type embryos, and I is a vhnf1 homozygous embryo. All pictures show dorsal views of flat-mounted (A–E, H, I) or whole (F, G) embryos, with anterior toward the left. All embryos are at the 5 s stage.
