ZFIN Image: Ota et al., 2009, Fig. 5


Figure Caption

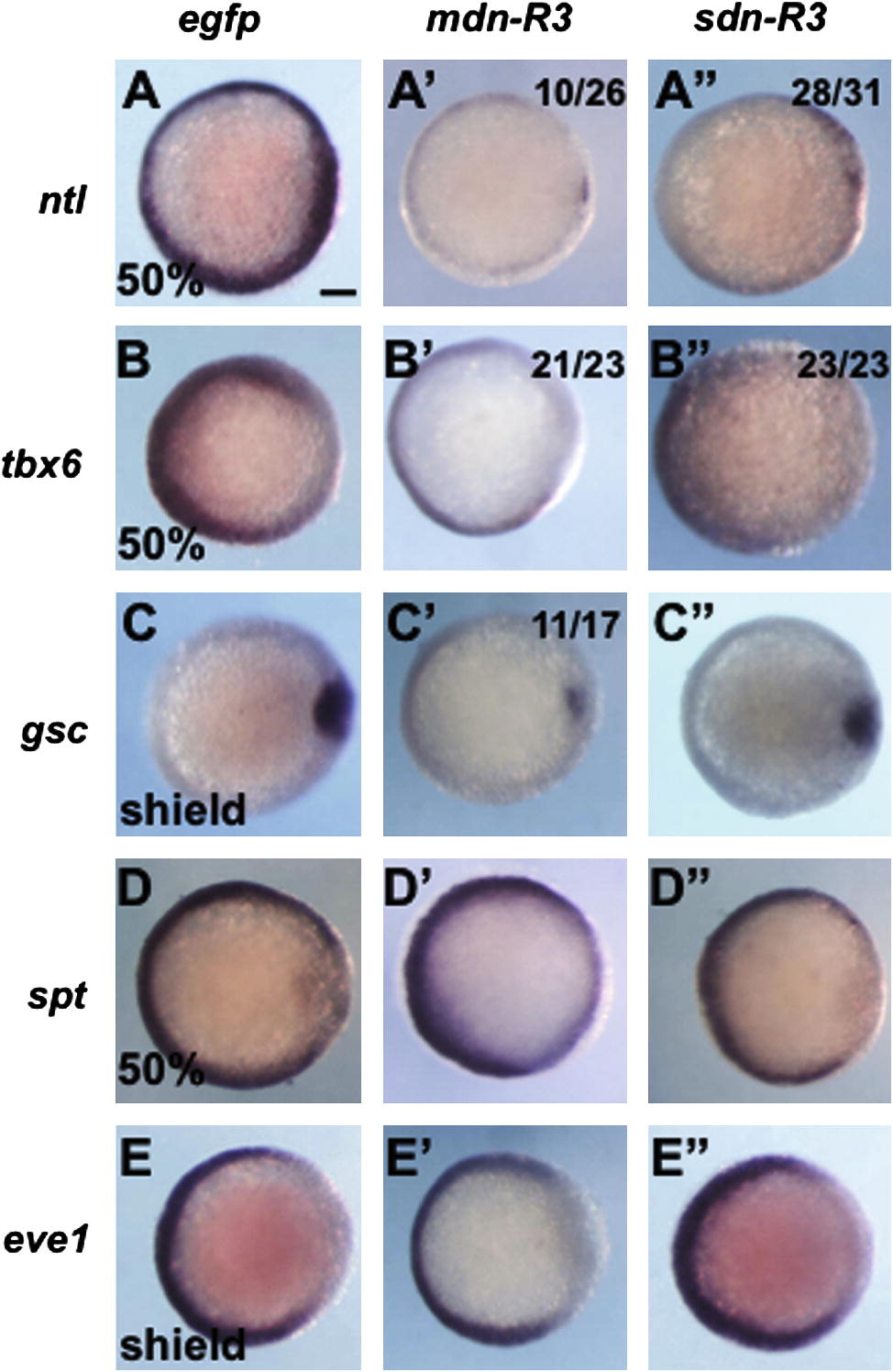

Fig. 5 Effects of two types of dominant-negative FGFR3c on the patterning in early gastrulae. Embryos were injected with mRNA (300 pg/embryo) for egfp, mdn-R3, or sdn-R3, and examined for the expression of regional marker genes at 50% epiboly or shield stage. All are animal pole views with dorsal to the right. When the injected embryos showed anomalies compared to control, the numbers of abnormal embryos against those that were stained are shown at the right top. The expression of ntl and tbx6 in the blastoderm margin was downregulated by both dominant-negative genes. gsc expression was repressed only with mdn-R3, and the expression of spt and eve1 in the ventral margin was little affected. Scale bars, 100 μm.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Mechanisms of Development, 126(1-2), Ota, S., Tonou-Fujimori, N., and Yamasu, K., The roles of the FGF signal in zebrafish embryos analyzed using constitutive activation and dominant-negative suppression of different FGF receptors, 1-17, Copyright (2009) with permission from Elsevier. Full text @ Mech. Dev.
