ZFIN Image: Martin et al., 1999, Fig. 7


Figure Caption

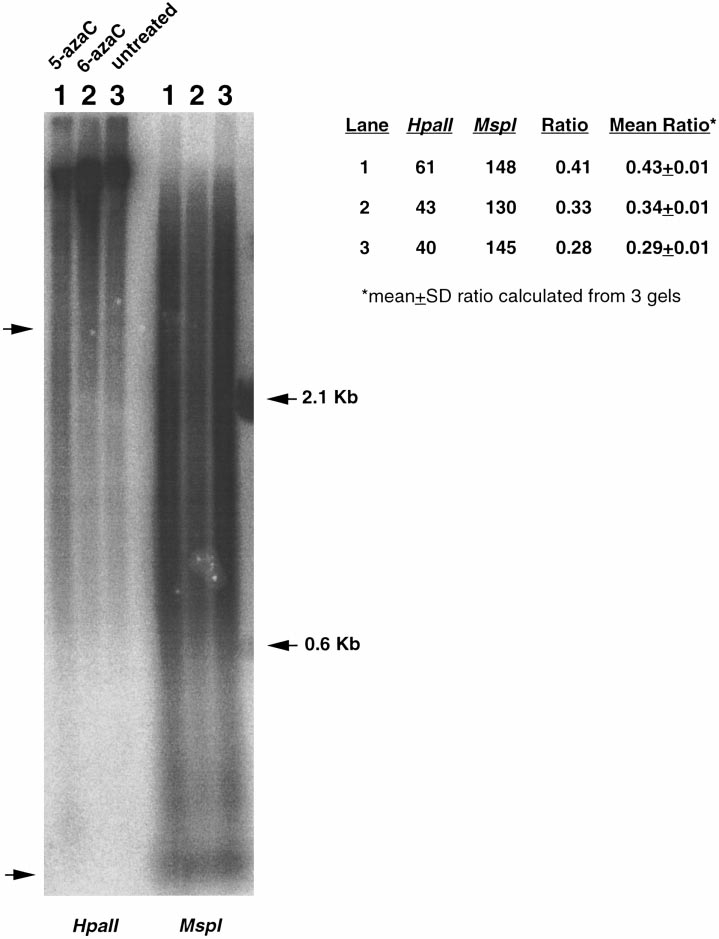

Fig. 7 Treatment of zebrafish embryos with 5-azacytidine in vivo results in reduced DNA methylation. DNA collected from 24-h wild-type embryos, and from 5-azaC-treated embryos were digested with HpaII or MspI, Southern transferred and probed with the DANA/mermaid interspersed repetitive DNA sequence as described under Materials and Methods. This revealed an approximately 50% higher relative abundance of low-molecular-weight fragments in HpaII digested DNA from 5-azaC-treated embryos (lane 1) compared to untreated embryos (lane 3), indicating DNA hypomethylation in treated embryos. DNA collected from embryos treated with 6-azaC (lane 2) show a methylation level similar to that observed from untreated embryo DNA. Densitometric analysis was performed as described in the legend for Fig. 4. Ratios are indicated as the average of 3 independent gels ± SD.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 206, Martin, C.C., Laforest, L., Akimenko, M.-A., and Ekker, M., A role for DNA methylation in gastrulation and somite patterning, 189-205, Copyright (1999) with permission from Elsevier. Full text @ Dev. Biol.
