Fig. 2

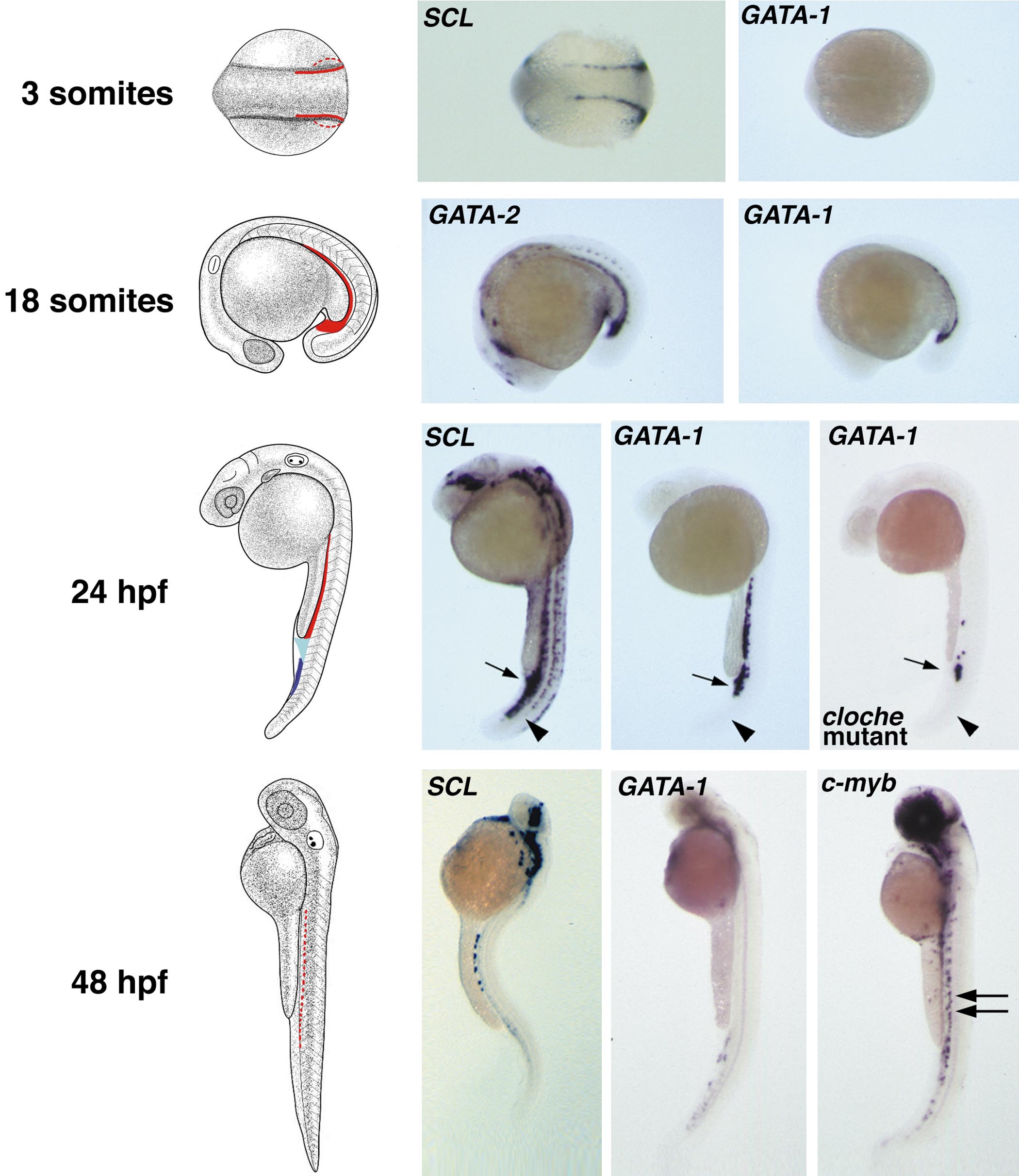

Fig. 2 The expression pattern of hematopoietic factors during zebrafish embryogenesis. Whole-embryo in situ hybridization analysis showing the localization of hematopoietic factors in zebrafish embryos at 3 somites, 18 somites, 24 h, or 48 h postfertilization (hpf). In the schematic panels (left), colored regions mark the anatomic areas involved in embryonic hematopoiesis. Early markers such as SCL are expressed in two stripes of lateral plate mesoderm by the 3-somite stage. GATA-1 expression, not detectable at this stage, begins at approximately 5 somites. Between 18 somites and 24 hpf the stripes converge and fuse to form the ICM (red, anterior ICM; light blue, posterior ICM; dark blue, ventral tail region). Unlike SCL, which is expressed throughout the ICM and in the ventral tail, GATA-1 expression is limited to the anterior and posterior ICM (arrows, posterior ICM; arrowheads, ventral tail putative hematopoietic region). In cloche mutant embryos, GATA-1 persists only in the posterior ICM. By 48 hpf, SCL and GATA-1 expression in blood is decreased, though SCL is highly expressed in the brain. c-myb is expressed in the ventral wall of the dorsal aorta (double arrow). 3 somites, dorsal view; 18 somites, anterior is to the left, dorsal is up; 24 and 48 hpf, anterior is up, dorsal is to the right. (Courtesy of C. Kimmel, M. A. Thompson, D. G. Ransom, and E. C. Liao.)
