ZFIN Image: Park et al., 2000, Fig. 3


Figure Caption

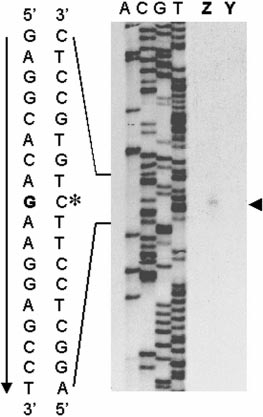

Fig. 3 Determination of transcription start site of HuC gene by primer extension. A [γ-³²P]ATP-labeled antisense oligonucleotide primer corresponding to the 24 bp (+169 to +192) of exon-1 of HuC was hybridized with total RNA isolated from 24 hpf zebrafish embryos (Z) or tRNA from yeast (Y) and subjected to primer extension. The extended DNA samples were size-fractionated on a denaturated 6% polyacrylamide gel containing 8 M urea. For the size ladder, a dideoxy DNA sequencing reaction for the zebrafish HuC genomic DNA with the same antisense oligonucleotide primer was performed and then simultaneously electrophoresed with the primer-extended samples on the same gel. An extended cDNA band from zebrafish RNA is indicated by the arrow and the corresponding nucleotide G is marked by an asterisk.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 227(2), Park, H.-C., Kim, C.-H., Bae, Y.-K., Yee, S.-Y., Kim, S.-H., Hong, S.-K., Shin, J., Yoo, K.-W., Hibi, M., Hirano, T., Miki, N., Chitnis, A.B., and Huh, T.-L., Analysis of upstream elements in the HuC promoter leads to the establishment of transgenic zebrafish with fluorescent neurons, 279-293, Copyright (2000) with permission from Elsevier. Full text @ Dev. Biol.
