ZFIN Image: Oates et al., 2000, Fig. 2


Figure Caption

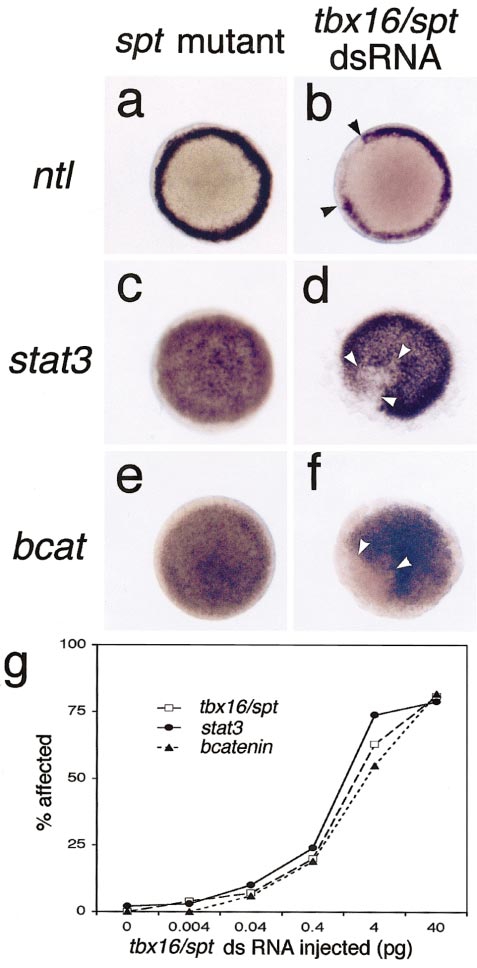

Fig. 2 The effects of tbx16/spadetail dsRNA injections are not restricted to those seen in the spadetail mutant. Embryos are viewed from the animal pole at 40% epiboly after in situ hybridization with ntl (a, b), stat3 (c, d), or β catenin riboprobe (e, f). Embryos from spt mutant clutches exhibit gene expression patterns identical to those of wild type (a, c, e), whereas injection with 40 pg tbx16/spt dsRNA causes depletion of the message from sector-like regions of the blastoderm (b, d, f). (g) Concentration dependence of the depletion of endogenous tbx16/spt, stat3, and β catenin mRNA at 40% epiboly on the amount of injected tbx16/spt dsRNA, measured by in situ hybridization.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 224(1), Oates, A.C., Bruce, A.E., and Ho, R.K., Too much interference: injection of double-stranded RNA has nonspecific effects in the zebrafish embryo, 20-28, Copyright (2000) with permission from Elsevier. Full text @ Dev. Biol.
