Fig. S1

ID: ZDB-IMAGE-080528-7
Publication: Bianco et al., 2008 - Brain asymmetry is encoded at the level of axon terminal morphology
All Figures: Figures for Bianco et al., 2008


Figure Caption

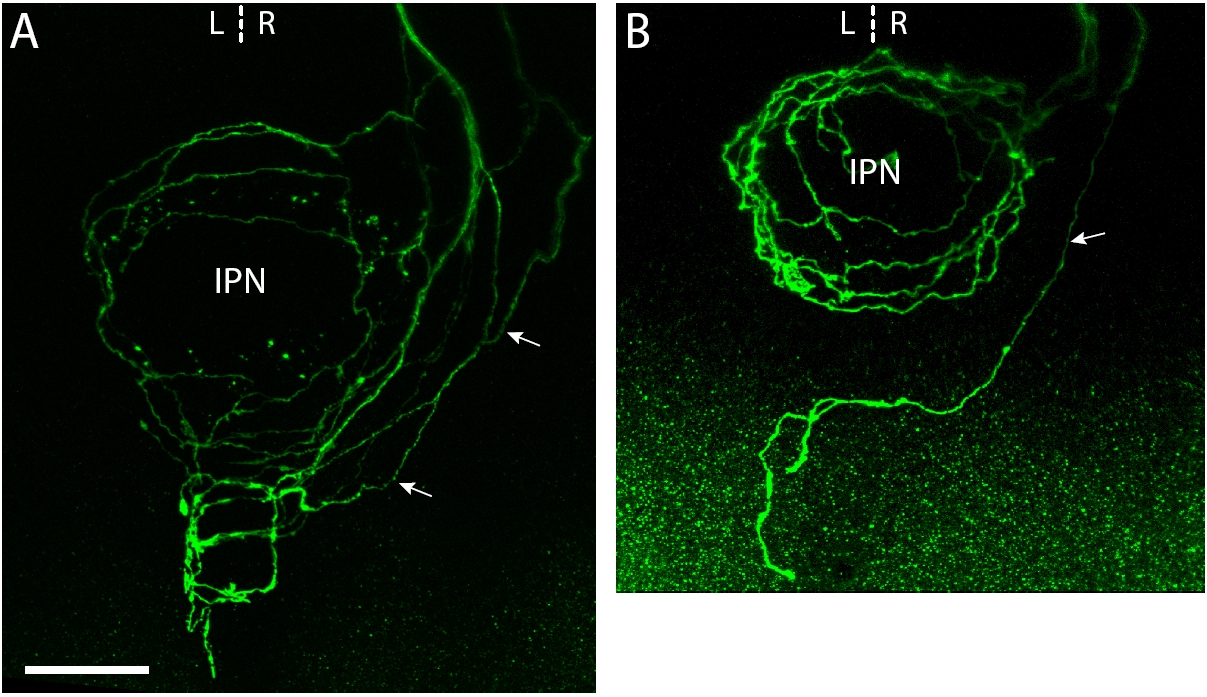

Fig. S1 A subset of habenular projection neurons extend axons that pass around the IPN and terminate in the anterior hindbrain. (a, b) Confocal z-projections of the ventral midbrain and anterior hindbrain in 5 dpf (a) and 8 dpf (b) larvae in which groups of habenular neurons have been labeled by focal electroporation. Some habenular neurons project axons that course ipsilaterally around the IPN (arrows) before converging medially to terminate on either side of the midline. These caudal terminations lie in the anterior hindbrain at the level of the serotoninergic raphé nucleus [16]. Scale bar: 25 μm.
