Fig. 8

ID
ZDB-IMAGE-080429-32
Source
Figures for Rastegar et al., 2002
Figure Caption

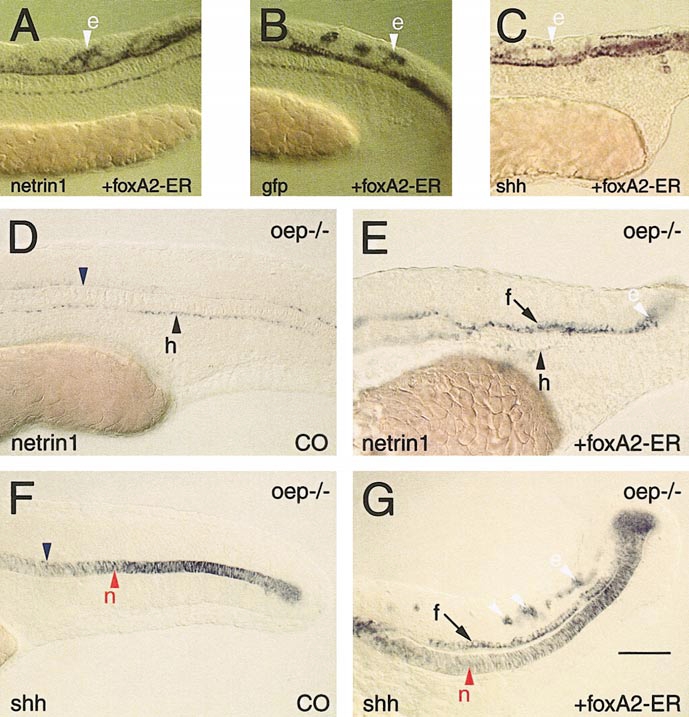

Fig. 8 foxA2 mimics gain-of-function phenotypes of Cyc/Nodal signals and rescues floor plate in cyc (Nodal) signalling-deficient embryos. Misexpression of foxA2-ER causes ectopic expression of netrin1 (A), gfp (B), and shh (C) in the neural tube of zebrafish embryos (white arrowheads, e). (D, F) netrin1 and shh expression pattern in oep mutants. Note that the expression in the ventral neural tube is absent (blue arrowhead) while the hypochord (black arrowhead, h) and notochord (red arrowhead, n) express normally netrin1 and shh, respectively. (E, G) Injection of foxA2-ER mRNA into oep embryos rescues netrin1 (E) and shh (G) in the neural tube at 24 hpf. Orientation of embryos: anterior is left and dorsal up. Abbreviations: e, ectopic floor plate (white arrowhead); f, floor plate (black arrow). Scale bar represents 50 μm (A–C) and 25 μm (D–G).
