ZFIN Image: Hawkins et al., 2008, Fig. 4


Figure Caption

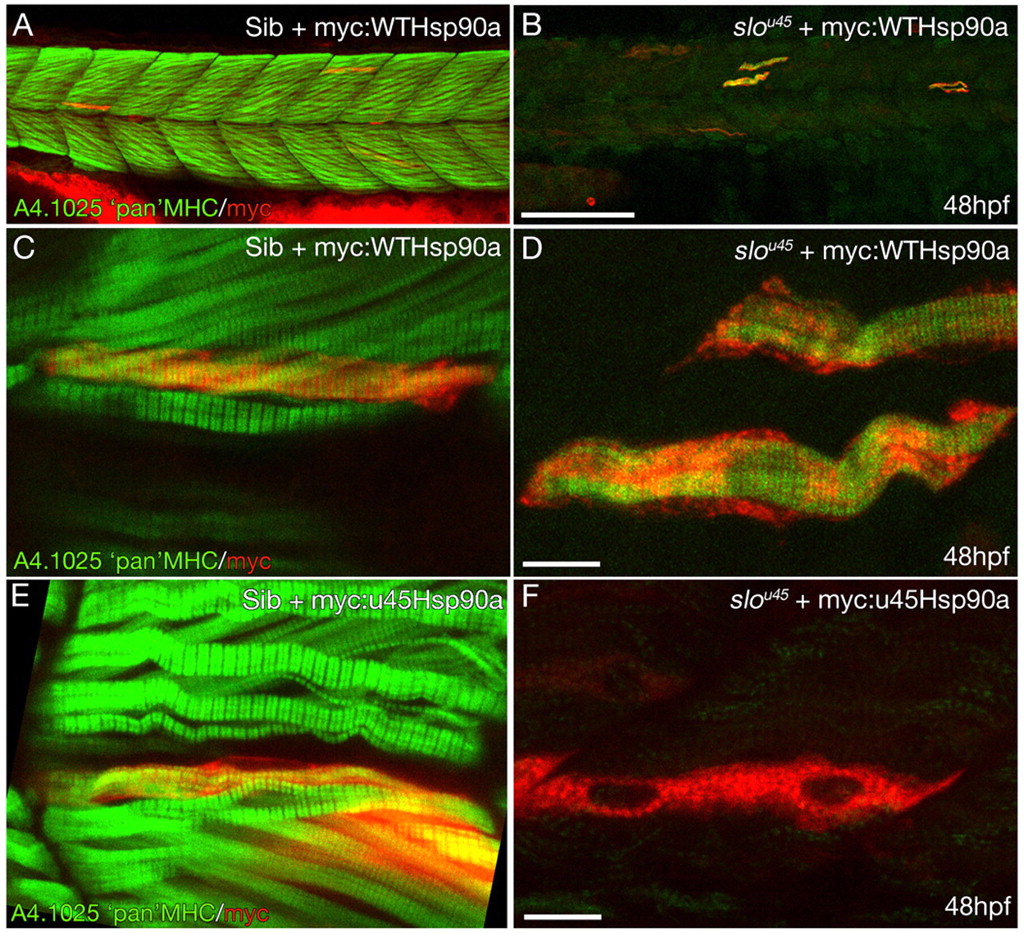

Fig. 4 Wild-type Hsp90a rescues thick filament formation in slo^u45 muscle cells whereas Hsp90a^u45 does not. (A-D) Muscle fibres from a slo^u45 mutant (B,D) and wild-type (Sib) (A,C) injected with DNA encoding myc:WTHsp90a double stained for myc (red) and MHC (green). MHC staining in siblings decorates the cells with organised bands (C) indicative of mature A-bands. In the slo^u45 mutant, striations in the MHC staining are only evident in myc+ cells (D). (E,F) Muscle fibres in sibling embryos injected with myc-tagged hsp90a^u45 DNA show organised MHC staining of myc+ cells (E). Myc+ cells in slo^u45 mutants injected with the same construct do not show organised myofibrils (F). Scale bars: 100 µm in A,B; 10 μm in C-F.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Development
