Figure Caption

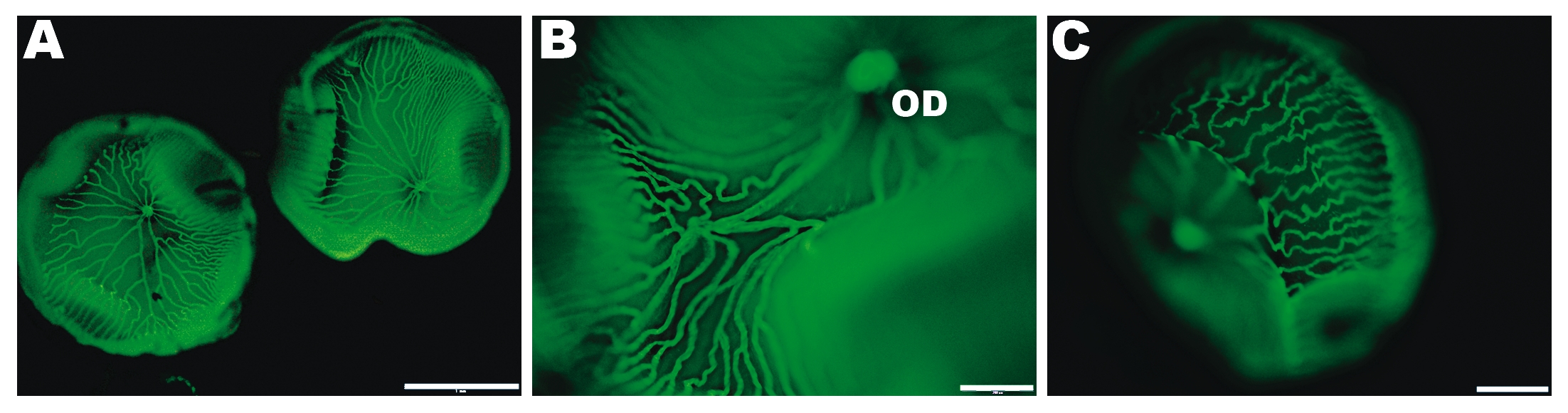

Fig. S2 Retinal vasculature in adult Plexin D1 mutants (obd) is characterised by a higher number of vessels and increased tortuosity. A: Left and right retinas from an obd mutant showing 9–10 main vascular branches radiating from the optic disc. Scale bar 1 mm. B: Higher magnification of an adult obd retina exhibiting extraneous vascular branches and loops that are never observed in wild types. Scale bar 200 μm. C: Plexin D1 obd mutant retina exhibiting increased vessel tortuosity. Scale bar 500 μm. OD: optic disc
