Fig. S4
- ID
- ZDB-IMAGE-071228-1
- Genes
- Publication
- Grzmil et al., 2007 - The INT6 Cancer Gene and MEK Signaling Pathways Converge during Zebrafish Development
- All Figures
- Figures for Grzmil et al., 2007
|

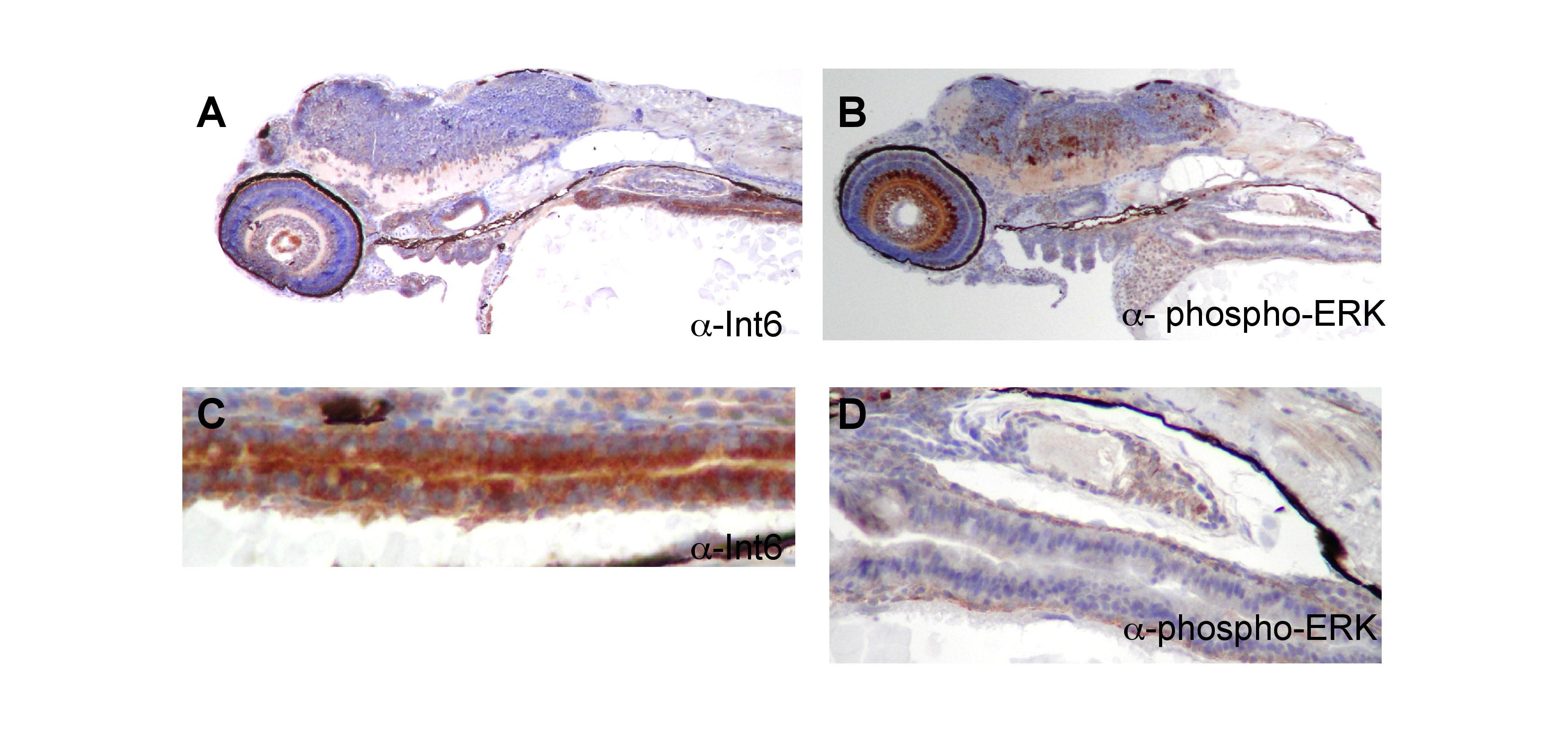

Fig. S4 Immunohistochemistry of Int6 and phospho-Erk staining in 4 dpf embryos. (A, B) While Int6 and phospho-Erk signaling overlap in the craniofacial region, they also have distinct patterns, for example in the eye and (C, D) gut. We note that while Int6 and phospho-Erk have overlapping domains of expression in the craniofacial region, Int6 staining in the craniofacial region was stronger than phospho-Erk, and phospho-Erk staining was limited to specific tissues within the craniofacial region. M, Meckel′s; E: Ethmoid plate; CH, ceratohyal; CB, ceratobrancial. Sagittal section, anterior to the left.
