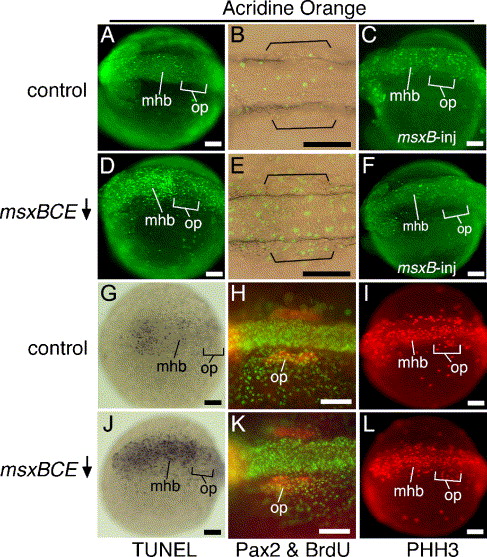

Fig. 5 Cell division and cell death in msxBCE morphants. (A–F) Vital staining with acridine orange (AO) in wild-type embryos at 14 hpf (A) and 15 hpf (B), a 14 hpf wild-type embryo injected with msxB plasmid (C), msxBCE morphants at 14 hpf (D) and 15 hpf (E), and a 14 hpf msxBCE morphant injected with msxB plasmid (F). Images in panels B and E show transmitted light plus fluorescence to show otic placode morphology (brackets) in relation to AO-staining. (G, J) Wholemount TUNEL staining at 14 hpf in a control embryo (G) and msxBCE morphant (J). (H, K) Staining at 14 hpf for BrdU (green) and Pax2 (red) in a control embryo (H) and msxBCE morphant (K). (I, L) Staining at 14 hpf for Phosphohistone H3 (PHH3) in a control embryo (I) and msxBCE morphant (L). All images show dorsal or dorsolateral views with anterior to the left. Abbreviations: mhb, midbrain–hindbrain border; op, otic placode. Scale bars, 100 μm.
