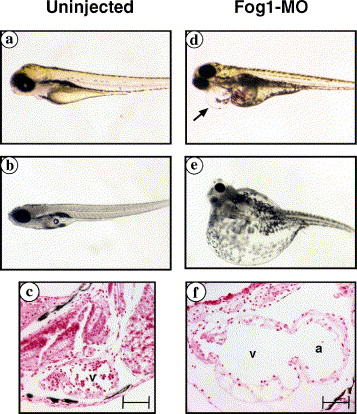

Fig. 6 Fog1 morphants have a hypoplastic ventricular wall. Gross morphology of a 4.5 days post-fertilization (a and d) or 7 days post-fertilization (b and e) embryo uninjected (a, b) or injected with an anti-fog1 morpholino at the single-cell stage (d, e). Note the extensive pericardial effusion in the Fog1 morphant. Below, longitudinal sections through the heart of an uninjected embryo (c) or a fog1 morphant (f) at 7 days post-fertilization. The ventricle is indicated by “v”, the atrium by “a”. Scale bar is 50 μm.
