Fig. 6

ID
ZDB-IMAGE-070917-27
Genes
Source
Figures for Liu et al., 2006
Figure Caption

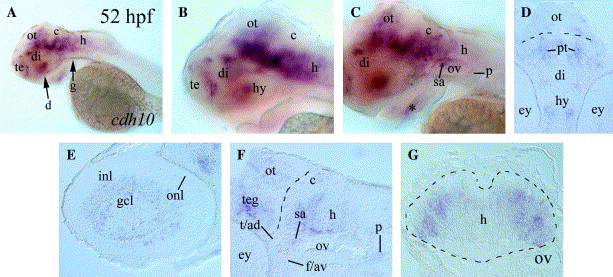

Fig. 6 cdh10 expression in 52 hpf embryos. Panels (A–C) are lateral views (anterior to the left and dorsal up) of whole mount embryos. Labeled arrows in (A) indicate levels of cross sections in respective panels. Panels (B) and (C) are higher magnifications of the head region of the embryo in (A), focusing on cdh10 expression domains in more medial and lateral regions, respectively. Panels (E) and (F) are parasagittal sections of the eye and the posterior half of the brain, respectively with anterior to the left and dorsal up. The asterisk in (C) indicates cdh10 expression in the first pharyngeal arch medial to the lower jaw. The dashed line in (D) indicates the border between the thalamus and optic tectum. The dashed line in (F) indicate the boundary between the mid- and hindbrains. The hindbrain border in (G) is outlined by the dashed line. Abbreviations: f/av, facial and anteroventral lateral line ganglion; gcl, retinal ganglion cell layer; inl, inner nuclear layer; onl, outer nuclear layer; pt, pretectal area; teg, tegmentum; t/ad, trigeminal; and anterodorsal lateral line ganglion. The remaining abbreviations are the same as in the previous figures.
