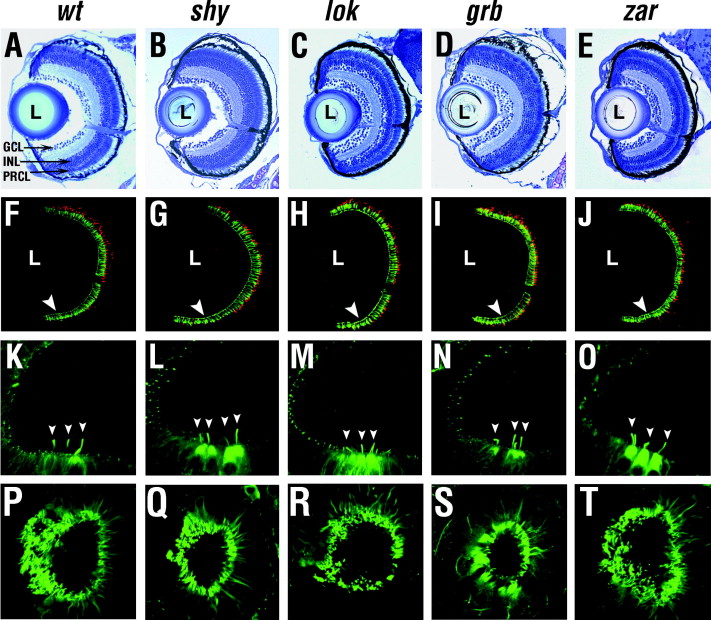

Fig. 3 Phenotype of sensory neurons. (A–E) Transverse plastic sections through the central retina near the optic nerve at 7 dpf. (F–J) Confocal images of transverse frozen sections through the retina near the optic nerve stained with Zpr1 (green) and anti-blue opsin (red) antibodies at 7 dpf. (K–O) Anterior tether cells (arrowheads) in otic vesicles immunostained for acetylated-α-tubulin at 30 hpf. (P–T) Nose cilia stained for acetylated-α-tubulin at 3 dpf. In A–J, “L” indicates the lens, midline is right, dorsal is up. Arrowheads in (F–J) indicate the photoreceptor cell layer. GCL, ganglion cell layer; INL, inner nuclear layer; PRCL, photoreceptor cell layer.
