ZFIN Image: Londin et al., 2007, Fig. 3


Figure Caption

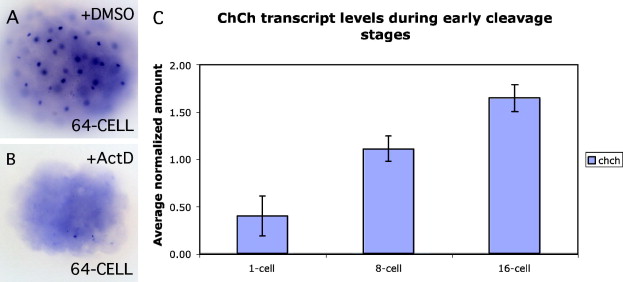

Fig. 3 chch is zygotically expressed prior to the mid-blastula transition. To determine if the early nuclear stain observed represents new zygotic transcripts, embryos were microinjected with the transcription inhibitor Actinomycin D (B) or DMSO (A). Embryos were collected at the 64-cell stage and examined for chch expression by RNA in situ hybridization. Following Actinomycin D treatment, the nuclear stain is lost. As a further test to confirm early zygotic transcription of chch, real-time PCR was performed on 1-cell through 16-cell embryos to determine if the relative amount of chch gene expression is increased as development progresses. This analysis revealed an increase in chch expression over these stages (C). Together these results show that chch is zygotically transcribed prior to the mid-blastula transition.

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene expression patterns : GEP, 7(6), Londin, E.R., Mentzer, L., Gates, K.P., and Sirotkin, H.I., Expression and regulation of the zinc finger transcription factor Churchill during zebrafish development, 645-650, Copyright (2007) with permission from Elsevier. Full text @ Gene Expr. Patterns
