Fig. 2
- ID
- ZDB-IMAGE-061110-9
- Publication
- Hong et al., 2006 - N-cadherin is required for the polarized cell behaviors that drive neurulation in the zebrafish
- All Figures
- Figures for Hong et al., 2006
|
Figure Caption

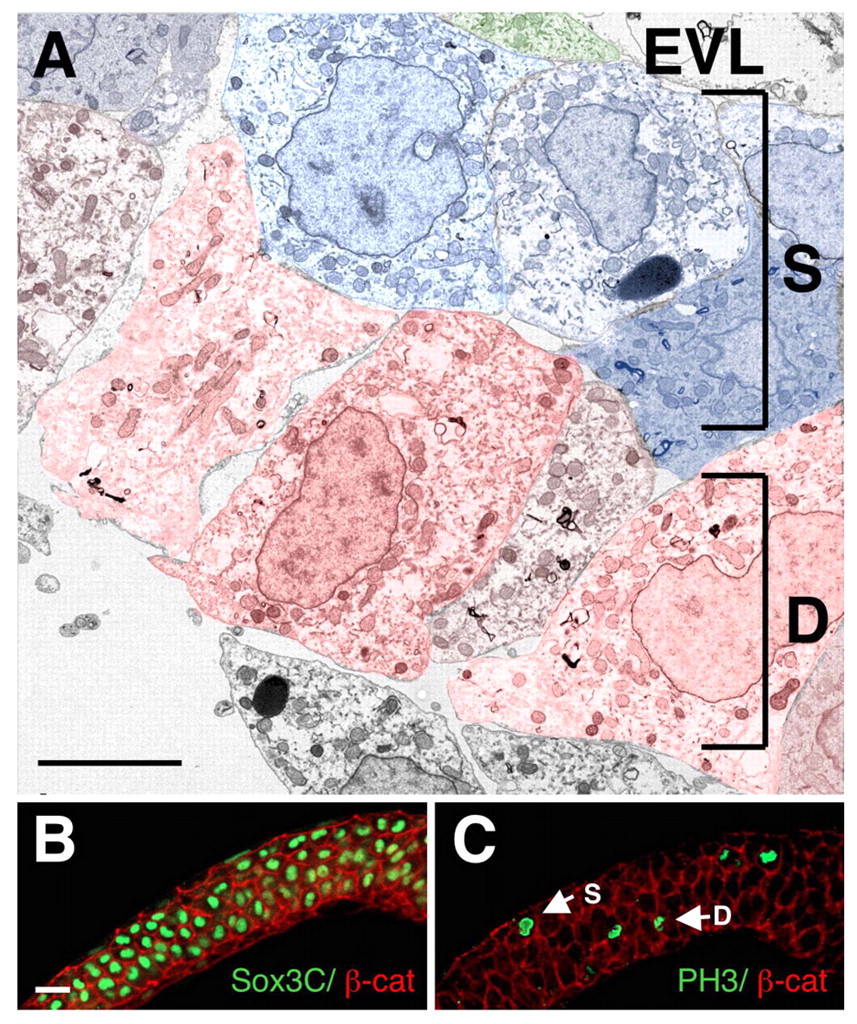

Fig. 2 The neural plate is multi-layered. Cross sections through the anterior lateral neural plate at the tailbud-1 som stage; dorsal is towards the top. (A) TEM micrograph, in which superficial cells are pseudocolored in blue, deep cells in red and the EVL in green. (B) Embryo double labeled with α-β-cat (red) and α-Sox3C (green). (C) Embryo double labeled with α-β-cat (red) and α-PH3 (green). Abbreviations are as in Fig. 1. Scale bars: in A, 5 μm; in B, 20 μm for B,C.
