Fig. 8
- ID
- ZDB-IMAGE-050707-11
- Publication
- von Hofsten et al., 2005 - Novel steroidogenic factor-1 homolog (ff1d) is coexpressed with anti-Mullerian hormone (AMH) in zebrafish
- All Figures
- Figures for von Hofsten et al., 2005
|
Figure Caption

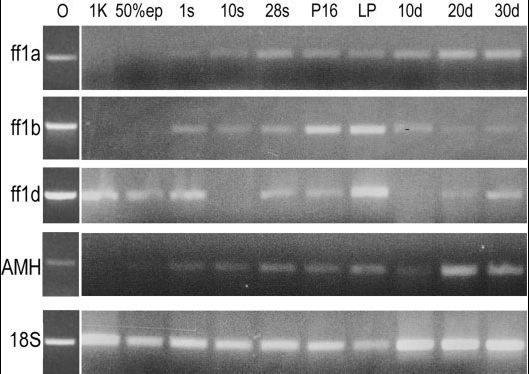

Fig. 8 Embryonic expression of ff1a, ff1b, ff1d, and AMH in adult zebrafish, detected by reverse transcriptase-polymerase chain reaction. Stages: O, unfertilized oocytes; 1K, 1K stage; 50% epiboly; 1s, 1 somite; 10s, 10 somites; 28s, 28 somites; P16, Prim 16; LP, Long Pec; 10d, 10 days postfertilization (dpf); 20d, 20 dpf; 30d, 30 dpf. AMH, anti-Mullerian hormone.
