Table zfindb.informix.expression_result2 Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
xpatres_pk_id serial8 19  √
expression_phenotype_term.ept_xpatres_id ept_xpatres_foreign_key_odc C
xpatres_efs_id int8 19
expression_figure_stage.efs_pk_id xpatres2_efs_id_fk_odc C
xpatres_expression_found boolean 1
xpatres_superterm_zdb_id varchar 50
term.term_zdb_id xpatres2_superterm_zdb_id_fk_odc C
xpatres_subterm_zdb_id varchar 50  √  null
term.term_zdb_id xpatres2_subterm_zdb_id_fk_odc C

Table contained 327,445 rows at Tue Dec 20 09:53 PST 2016

Indexes:
Column(s) Type Sort Constraint Name
xpatres_expression_found + xpatres_efs_id + xpatres_superterm_zdb_id + xpatres_subterm_zdb_id + xpatres_expression_found Must be unique Asc/Asc/Asc/Asc/Asc 419_775
xpatres_expression_found + xpatres_efs_id + xpatres_superterm_zdb_id + xpatres_expression_found + xpatres_subterm_zdb_id Must be unique Asc/Asc/Asc/Asc/Asc xpatres_alternate_key_index
xpatres_expression_found + xpatres_efs_id Performance Asc/Asc xpatres_efs_foreign_key_index
xpatres_expression_found + xpatres_pk_id Must be unique Asc/Asc xpatres_primary_key_index
xpatres_expression_found + xpatres_subterm_zdb_id Performance Asc/Asc xpatres_subterm_foreign_key_index
xpatres_expression_found + xpatres_superterm_zdb_id Performance Asc/Asc xpatres_superterm_foreign_key_index

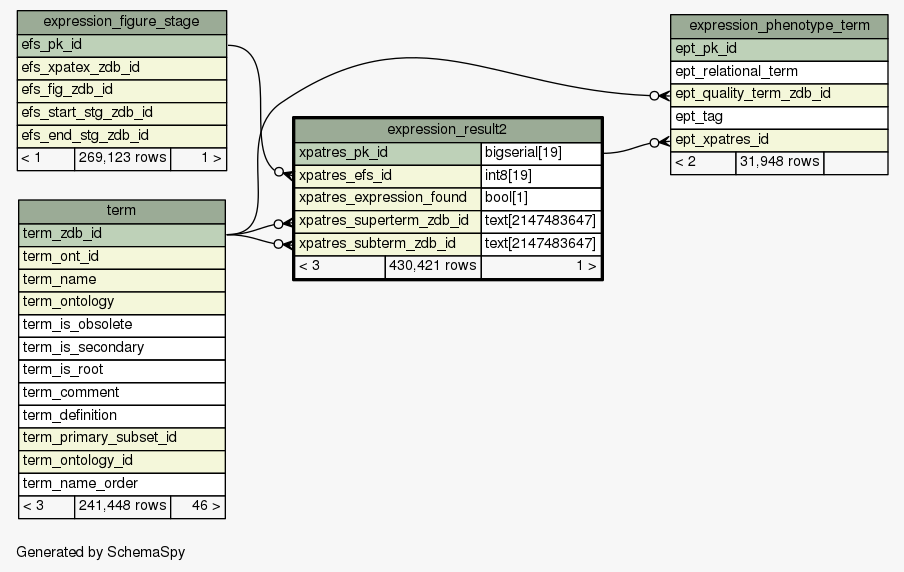

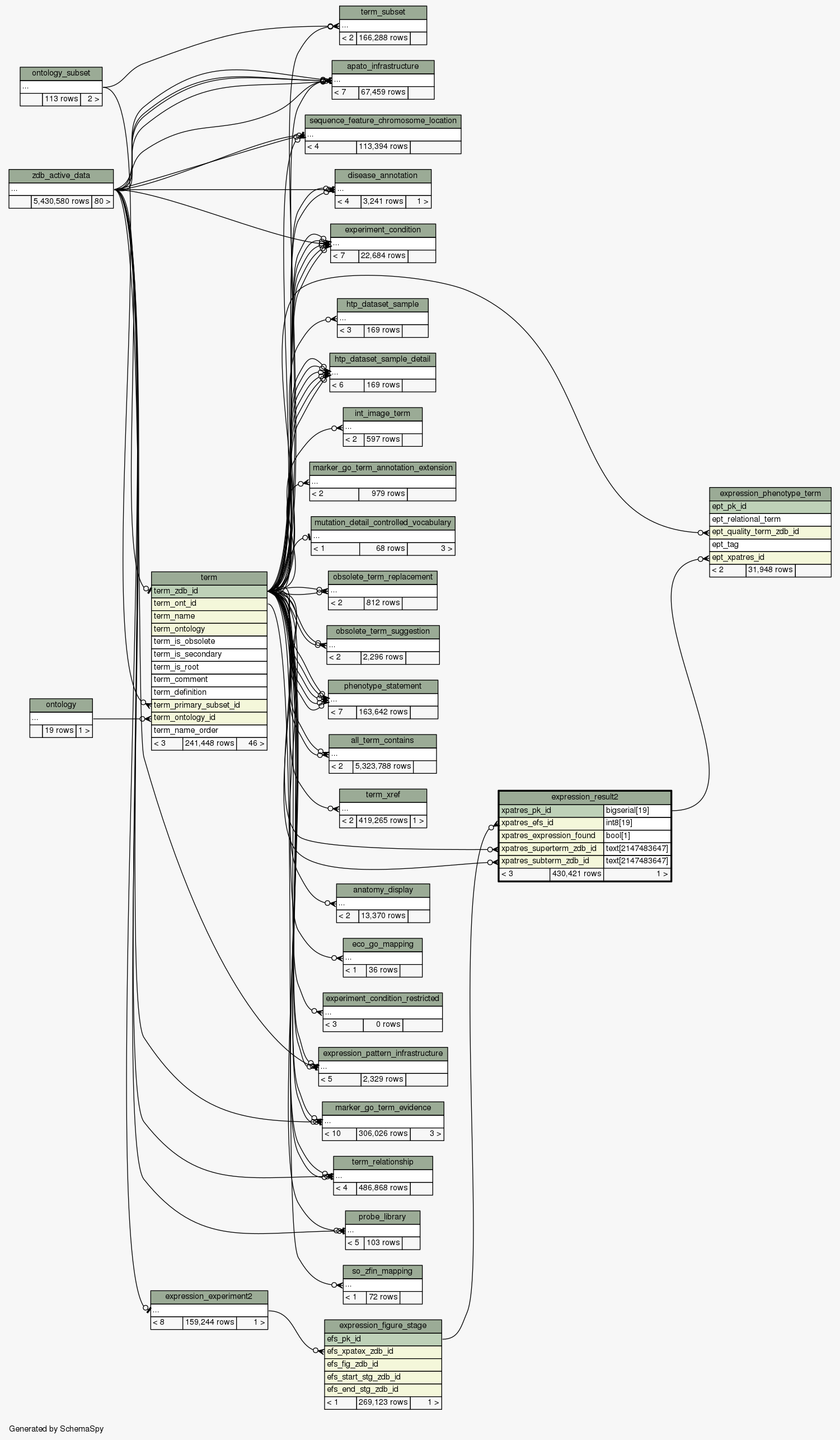

Close relationships  within of separation:
