Table zfindb.public.expression_figure_stage Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
efs_pk_id bigserial 19  √  nextval('expression_figure_stage_efs_pk_id_seq'::regclass)
expression_result2.xpatres_efs_id xpatres2_efs_id_fk_odc C
efs_xpatex_zdb_id text 2147483647
expression_experiment2.xpatex_zdb_id efs_xpatex_zdb_id_fk_odc C
efs_fig_zdb_id text 2147483647
efs_start_stg_zdb_id text 2147483647
efs_end_stg_zdb_id text 2147483647

Table contained 225,044 rows at Mon Sep 03 04:09 PDT 2018

Indexes:
Column(s) Type Sort Constraint Name
efs_pk_id Primary key Asc expression_figure_stage_primary_key
efs_end_stg_zdb_id Performance Asc efs_end_stg_fk_index
efs_fig_zdb_id Performance Asc efs_fig_fk_index
efs_start_stg_zdb_id Performance Asc efs_start_stg_fk_index
efs_xpatex_zdb_id Performance Asc efs_xpatex_fk_index
efs_xpatex_zdb_id + efs_fig_zdb_id + efs_start_stg_zdb_id + efs_end_stg_zdb_id Must be unique Asc/Asc/Asc/Asc expression_figure_stage_alternate_key_index

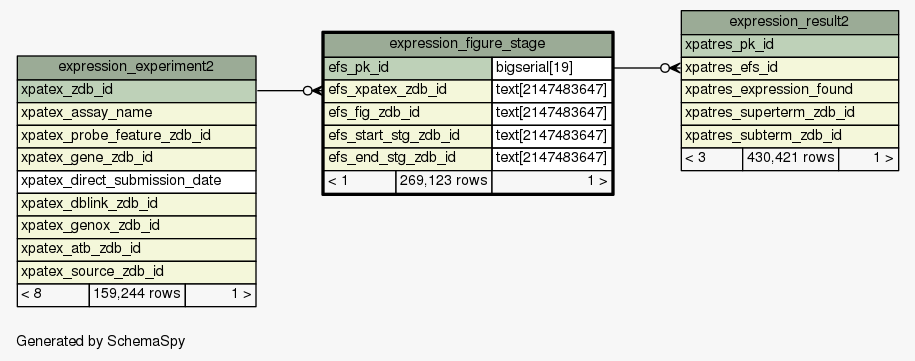

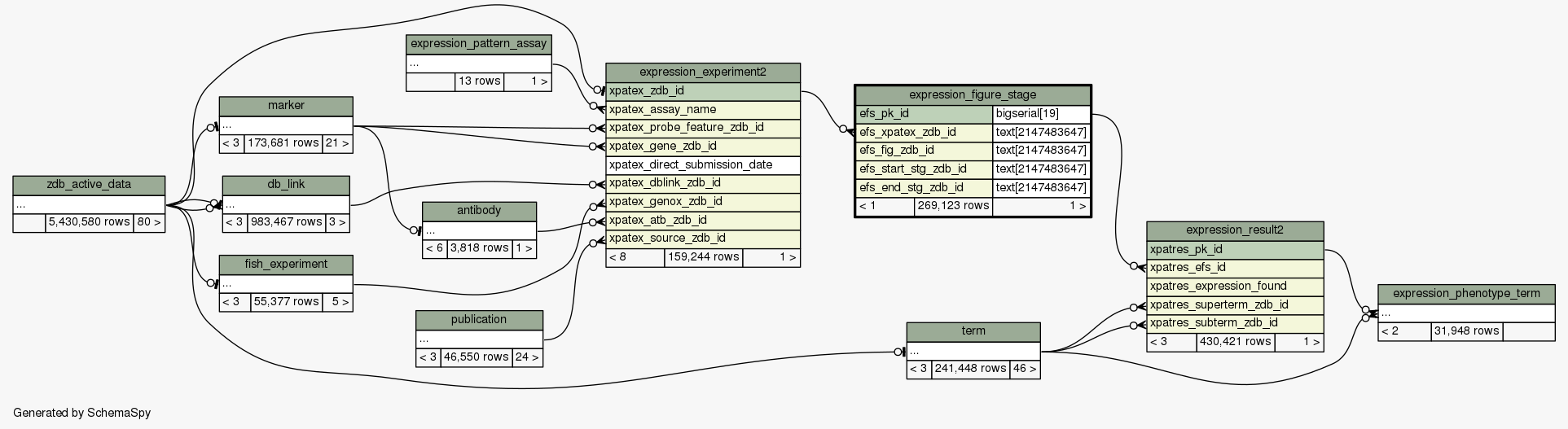

Close relationships  within of separation:
