Table zfindb.informix.phenotype_experiment Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
phenox_pk_id serial8 19  √
phenotype_statement.phenos_phenox_pk_id phenos_phenox_id_foreign_key R
phenox_genox_zdb_id varchar 50
fish_experiment.genox_zdb_id phenox_genox_foreign_key_odc C
phenox_start_stg_zdb_id varchar 50
stage.stg_zdb_id phenox_start_stg_foreign_key_odc C
phenox_end_stg_zdb_id varchar 50
stage.stg_zdb_id phenox_end_stg_foreign_key_odc C
phenox_fig_zdb_id varchar 50
figure.fig_zdb_id phenox_fig_foreign_key_odc C
phenox_created_date datetime year to second 19  √  current
phenox_last_modified datetime year to second 19  √  current

Table contained 48,836 rows at Thu Jun 22 08:42 PDT 2017

Indexes:
Column(s) Type Sort Constraint Name
phenox_genox_zdb_id + phenox_start_stg_zdb_id + phenox_end_stg_zdb_id + phenox_fig_zdb_id Must be unique Asc/Asc/Asc/Asc phenotype_experiment_alternate_key_index
phenox_pk_id Must be unique Asc phenotype_experiment_primary_key_index
phenox_end_stg_zdb_id Performance Asc phenox_end_stg_zdb_id_foreign_key_index
phenox_fig_zdb_id Performance Asc phenox_fig_zdb_id_foreign_key_index
phenox_genox_zdb_id Performance Asc phenox_genox_zdb_id_foreign_key_index
phenox_start_stg_zdb_id Performance Asc phenox_start_stg_zdb_id_foreign_key_index

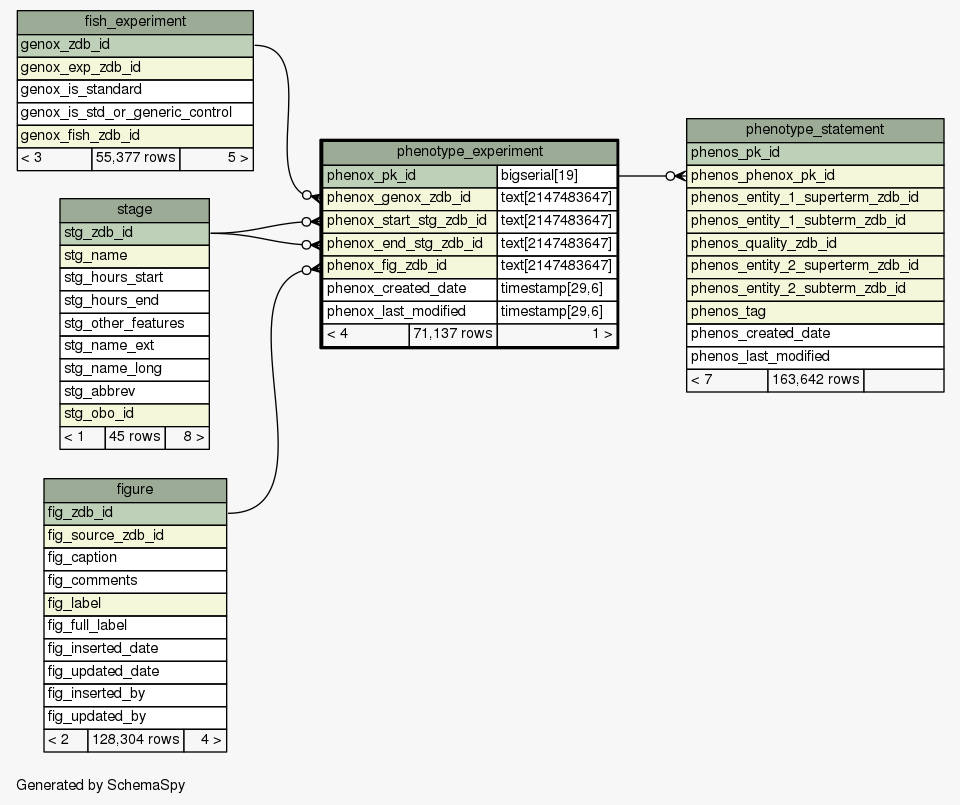

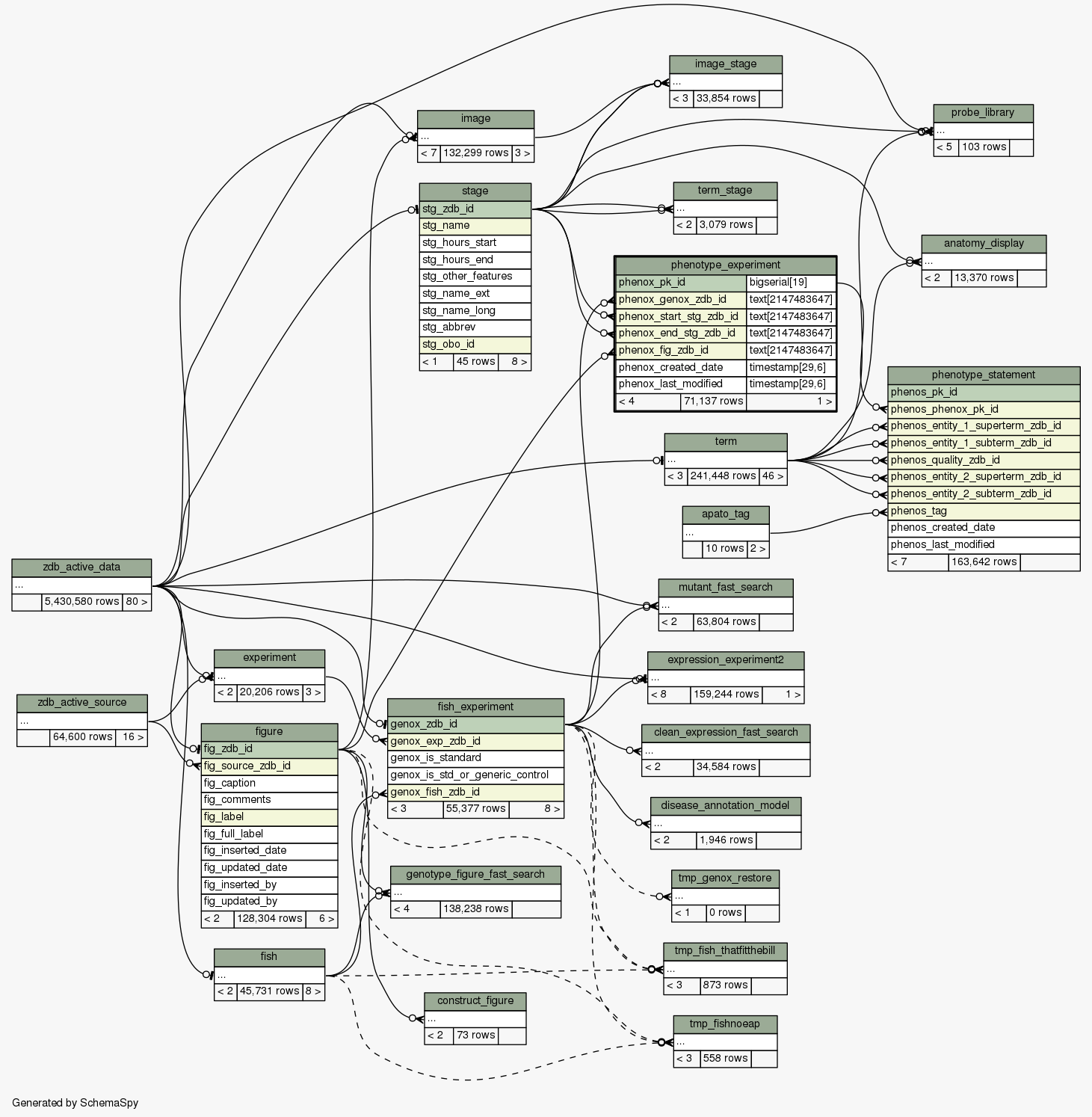

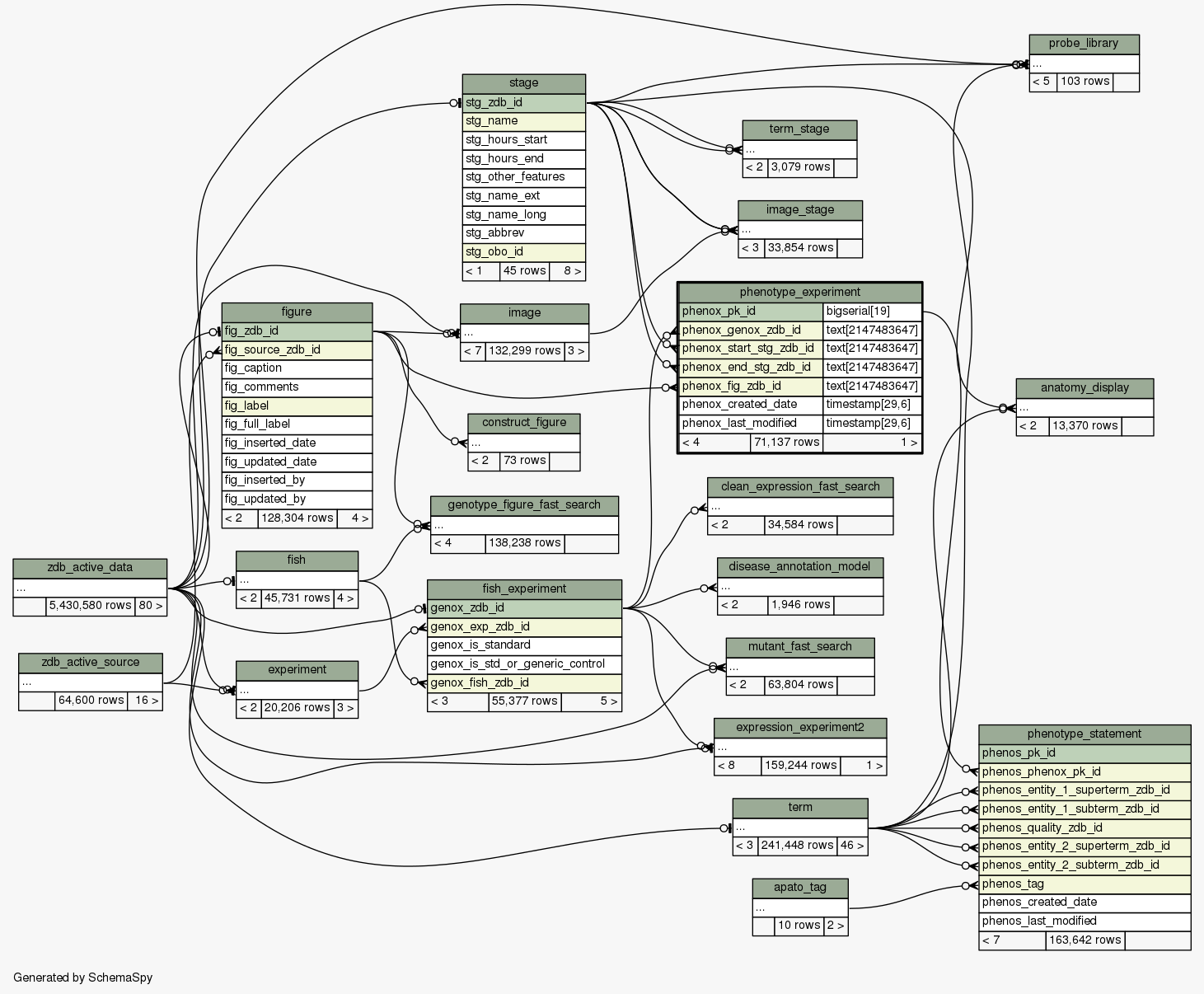

Close relationships  within of separation:
