Column Type Size Nulls Auto Default Children Parents Comments
run_zdb_id text 2147483647
blastdb_run.blastdbr_run_zdb_id blastdbr_run_zdb_id_foreign_key R
run_candidate.runcan_run_zdb_id runcan_run_zdb_id_foreign_key_odc C
zdb_active_data.zactvd_zdb_id run_zdb_active_data_foreign_key_odc C
run_nomen_pub_zdb_id text 2147483647 'ZDB-PUB-030508-1'::text
publication.zdb_id run_nomen_pub_foreign_key_odc C
run_relation_pub_zdb_id text 2147483647  √  null
publication.zdb_id run_relation_pub_foreign_key_odc C
run_name text 2147483647
run_program text 2147483647
run_program.runprog_program run_program_foreign_key R
run_blastdb text 2147483647
run_date timestamp 29,6
run_version text 2147483647  √  null
run_type text 2147483647
run_type.runtype_name run_type_foreign_key R

Table contained 12 rows at Mon Sep 03 04:09 PDT 2018

Indexes:
Column(s) Type Sort Constraint Name
run_zdb_id Primary key Asc run_primary_key
run_name Must be unique Asc run_name_alternate_key_index
run_nomen_pub_zdb_id Performance Asc run_nomen_pub_foreign_key_index
run_program Performance Asc run_program_foreign_key_index
run_relation_pub_zdb_id Performance Asc run_relation_pub_foreign_key_index
run_type Performance Asc run_type_foreign_key_index

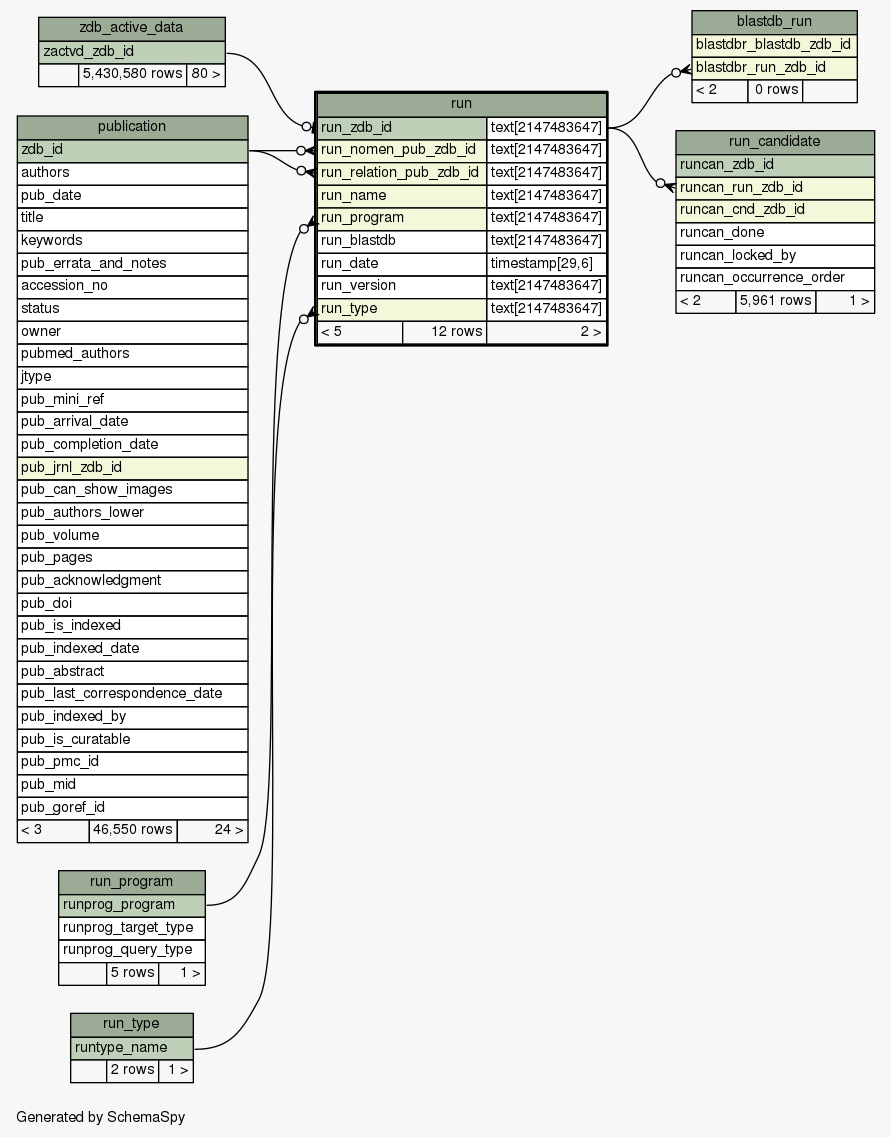

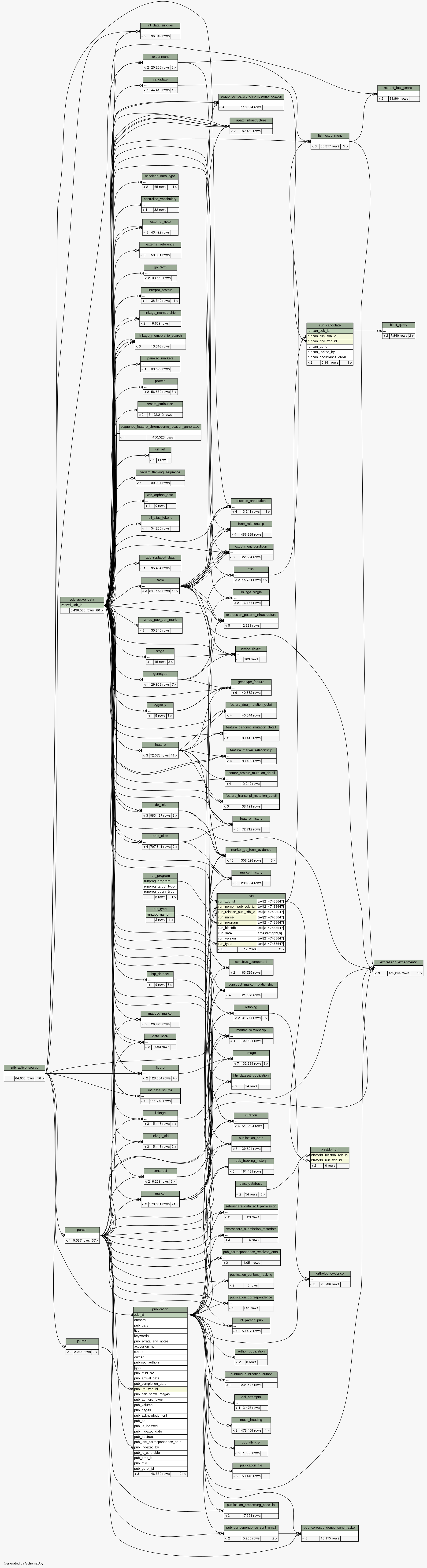

Close relationships  within of separation:
