Fig. 7-S1

ID
ZDB-IMAGE-181023-5
Source
Figures for Yamaguchi et al., 2018
Figure Caption

Fig. 7-S1

Expansion of pronephric duct was observed in twister-/- and pih1d2-/-;ktu-/-.

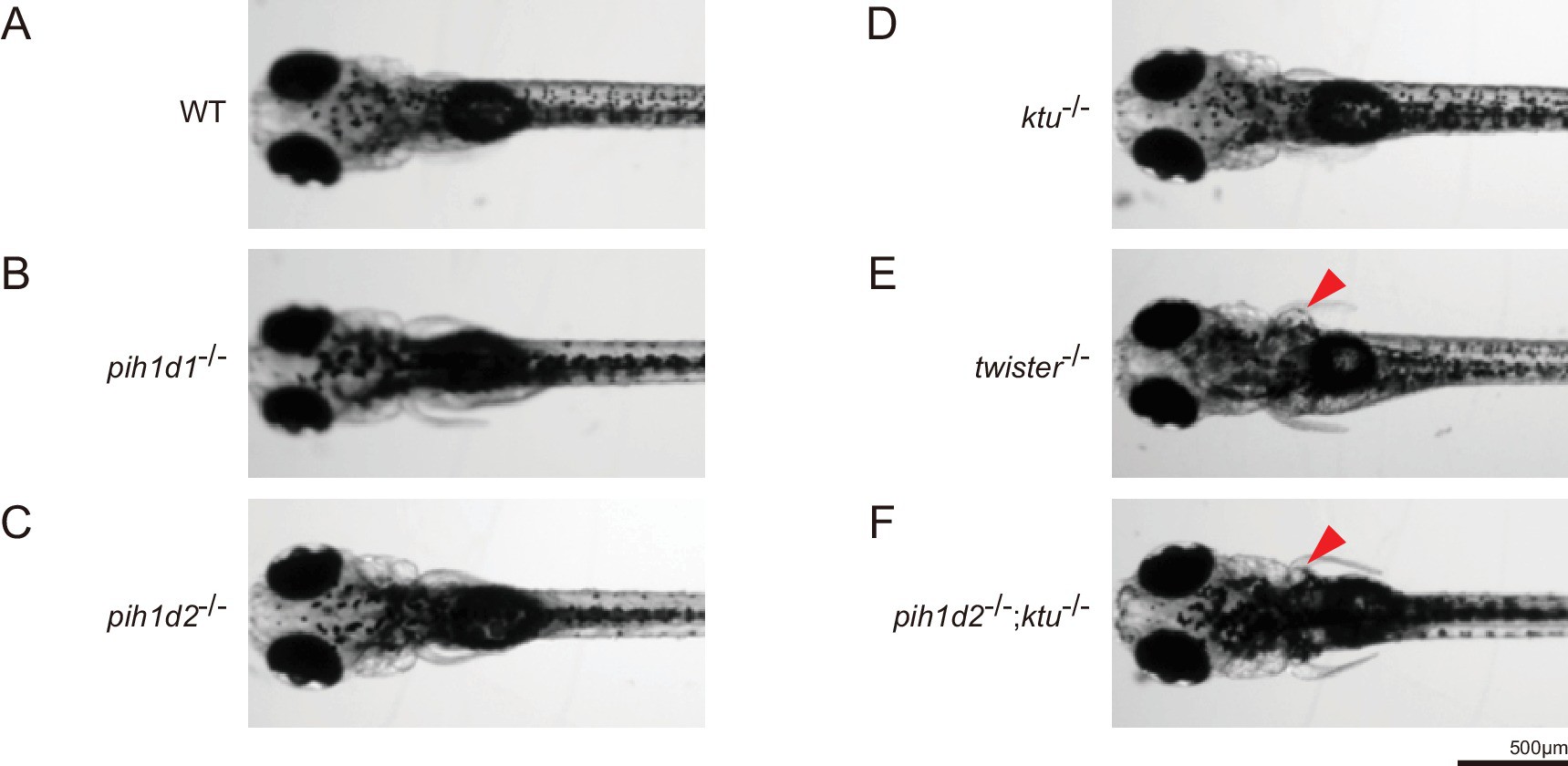

(A–F) Dorsal views of zebrafish larvae at 4 days post-fertilization. (A) WT, (B) pih1d1-/-, (C) pih1d2-/-, (D) ktu-/-, (E) twister-/-, (F) pih1d2-/-;ktu-/-. twister-/- and pih1d2-/-;ktu-/- exhibited abnormal expansions of pronephric ducts (red arrowheads), which disabled larvae from having their pectoral fins close to their bodies.
